SYIL X7 Small CNC Machine

Small Size, Big Benefits

400 x 300 x 380 (XYZ) Travel
16 Station High Speed Arm Type ATC
12,000 RPM BT30 Spindle
THK Linear Guides
Schneeberger Epoxy Granite Casting

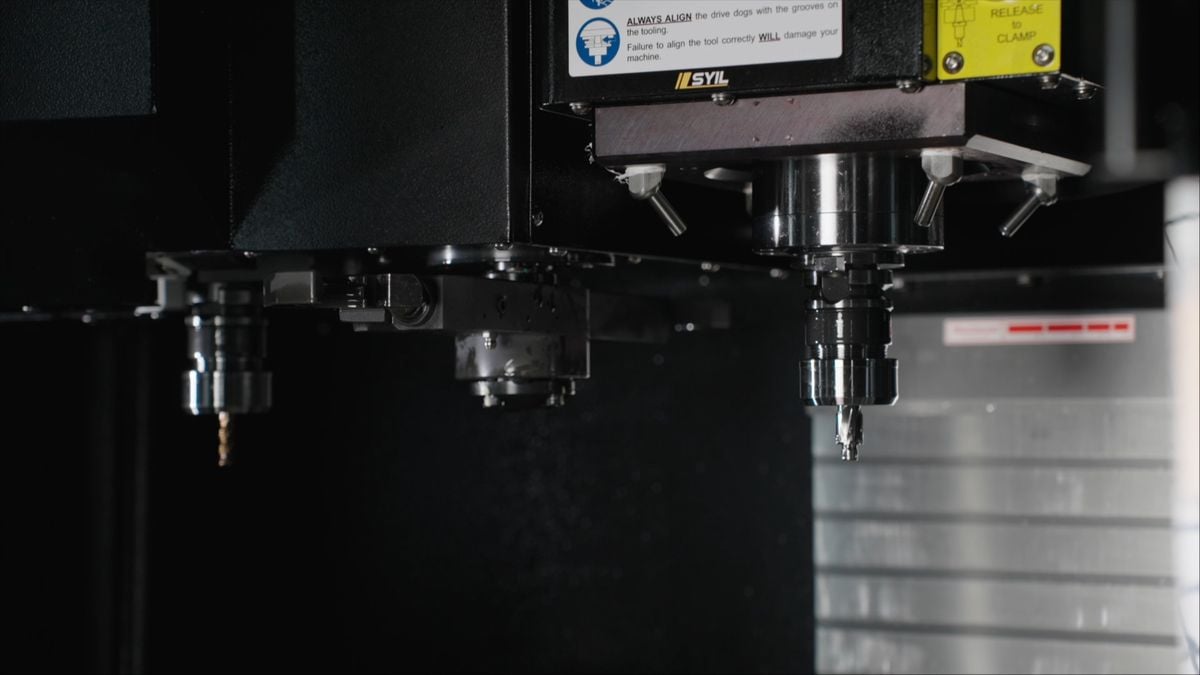

Table

Table size

27.56"×11.81" (700×300 mm)

T-slots (number×size×distance)

0.12×0.55×3.94" (3×14×100 mm)

Max. table load

330 lb (150 kg)

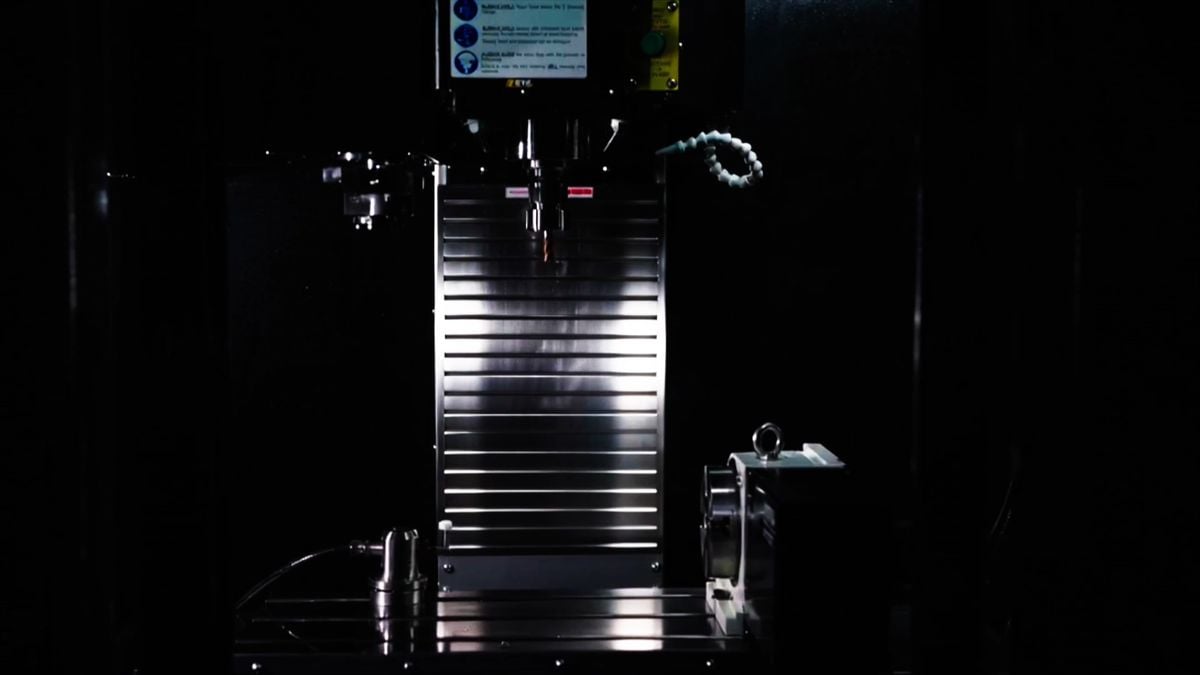

Travel

X travel

15.7″ (400 mm)

Y travel

11.8" (300 mm)

Z travel

14.9" (380 mm)

Distance between spindle end and tabletop

5.9"- 20.8" (150-530 mm)

Distance between spindle and column surface

14" (358 mm)

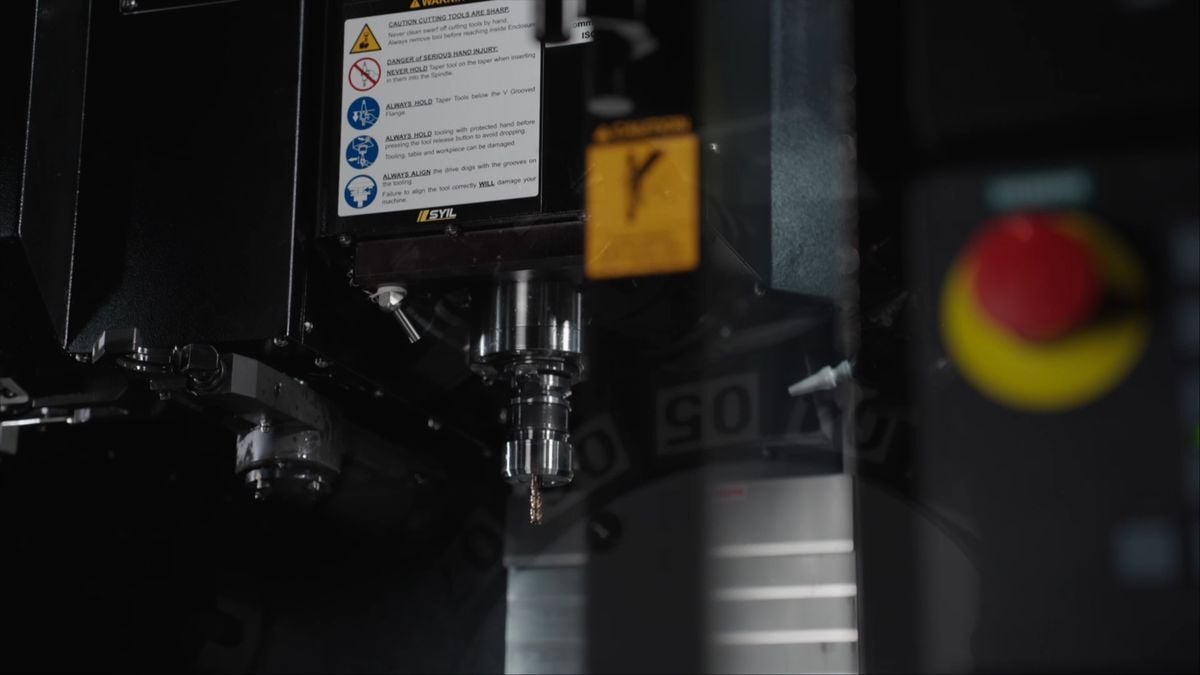

Spindle

Spindle Nose

BT30

Spindle Speeds

12,000 rpm

Mechanism of Transmission

Belt

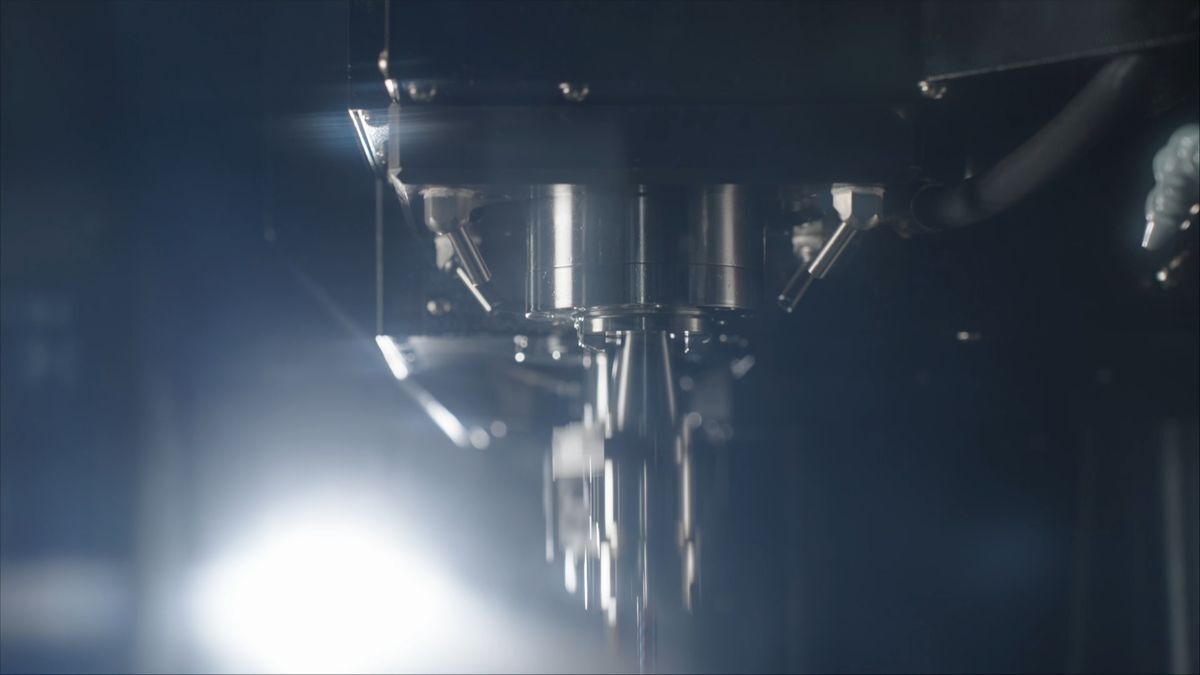

Feed

Cutting Feed

10,000 mm/min

Rapid Traverse

30,000 mm/min

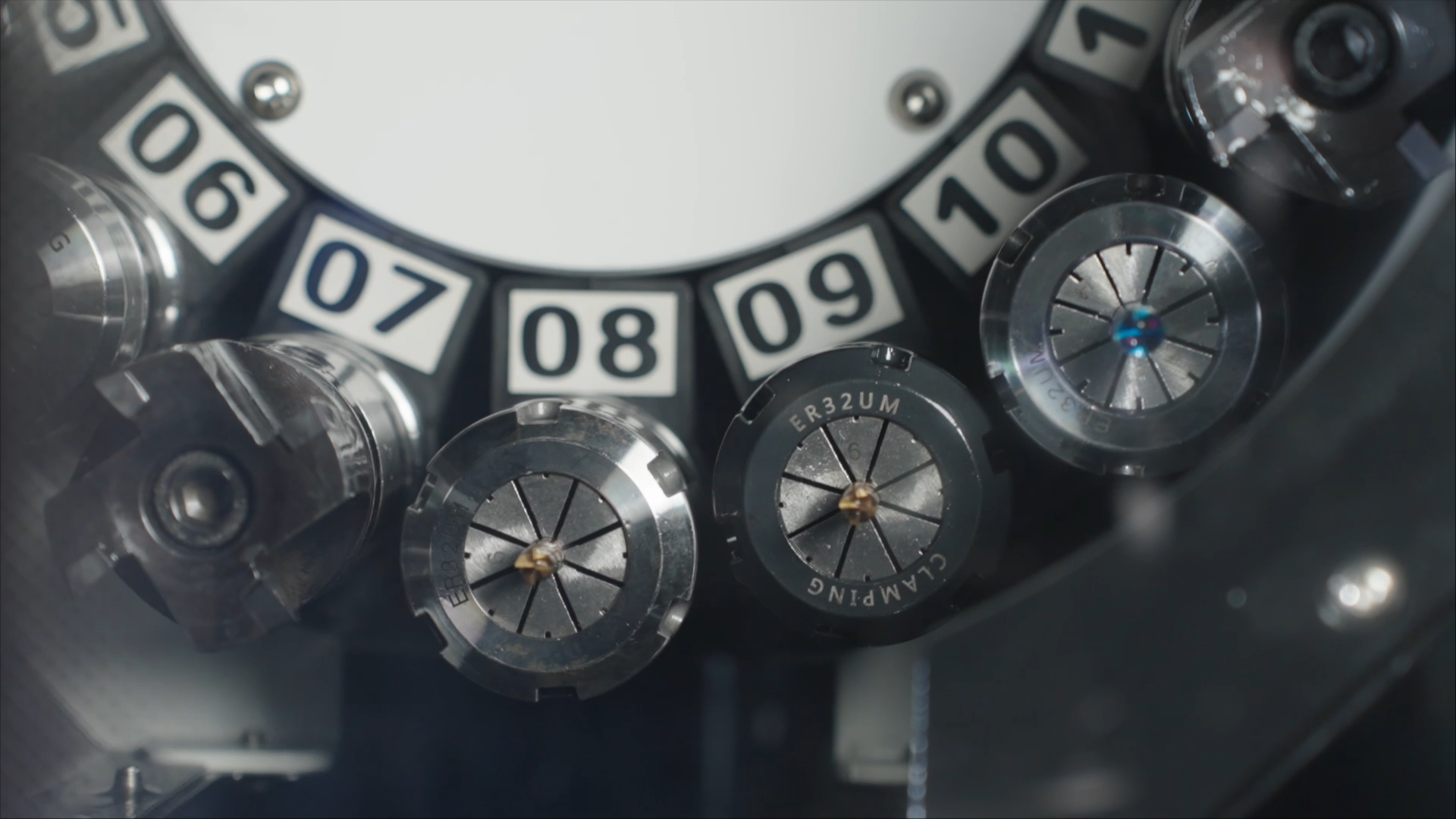

Auto Tool Changer

Tool Type

Umbrella

Tool Storage Capacity

12 pcs

Max. Tool Diameter

2.4" (63 mm)

Max. Tool Length

7.8" (200 mm)

Max. Tool Weight:

6.6 lb (3 kg)

Tool to Tool

1.5 s

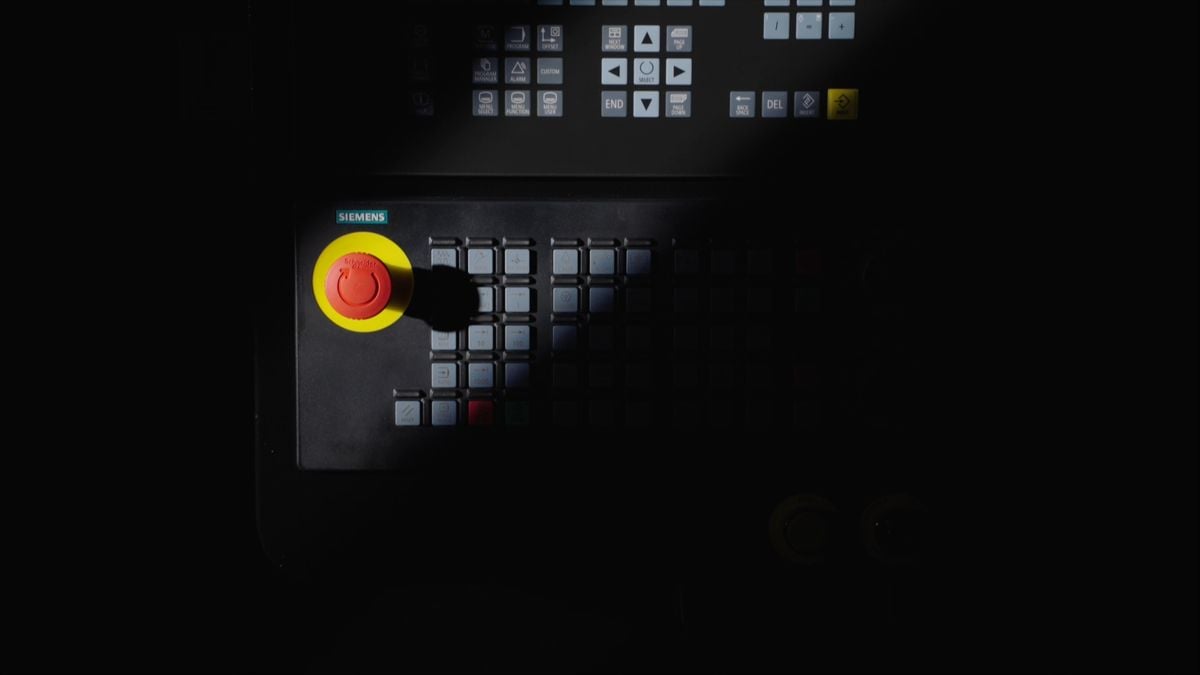

Power - Siemens 828

Spindle motor output (Rate/Max)

7.5/11 kW

Drive motors (X,Y,Z)

1.1/2.2/2.2 kW

Power source

AC380V/ 3-Phase

Power

14 kVA

Power - Syntec

Spindle motor output (Rate/Max)

8.2/12 kW

Drive motors (X,Y,Z)

1.1/1.7/2.4 kW

Power source

AC380V/ 3-Phase

Power

14 kVA

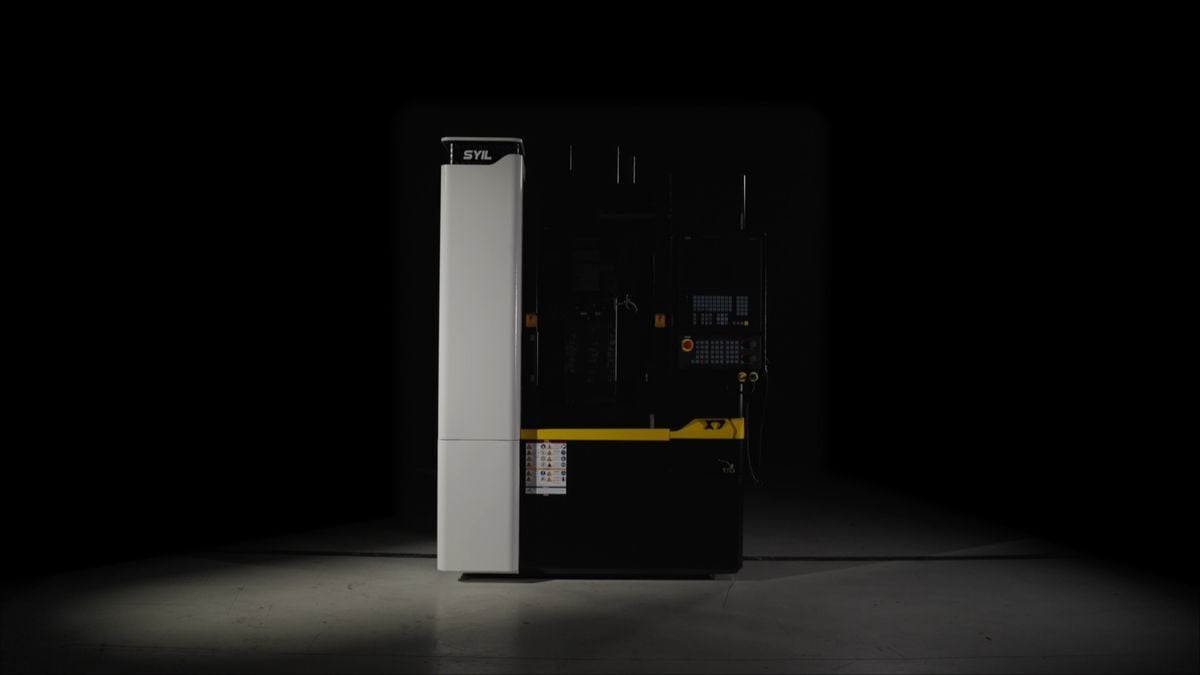

Machine Size and Weight

Floor size (L×W×H)

70.87 × 62.99 × 88.58" (1800×1600×2250 mm)

Weight

2200 kg

SYIL X7

Improve Your Productivity Levels With this Small CNC Mill.

SYIL x Siemens SINUMERIK

The SYIL X5 is equipped with the Siemens SINUMERIK 828D control system as standard. With its unique CNC performance, the SINUMERIK 828D control sets productivity standards when it comes to milling on SYIL machines. With the new SINAMICS drives and SIMOTICS motion control motors, the SINUMERIK 828D is now even more productive. The robust hardware architecture and intelligent control algorithms, together with the high-quality drive and motor technology, ensure maximum dynamics and precision during machining.

SYIL X7

Powered by the Best In-Built Components

SYIL X7 Core Features

The small SYIL X7 CNC machine offers a small footprint with unprecedented speed. It provides full CNC capabilities in a compact space, ensuring high processing quality. Moreover, this efficiently competent CNC mill comes at an affordable price. Due to its excellent competency and high affordability rates, it is the right match for all CNC cuttings at low unit costs.

Schneeberger

Mineral casting machine frame

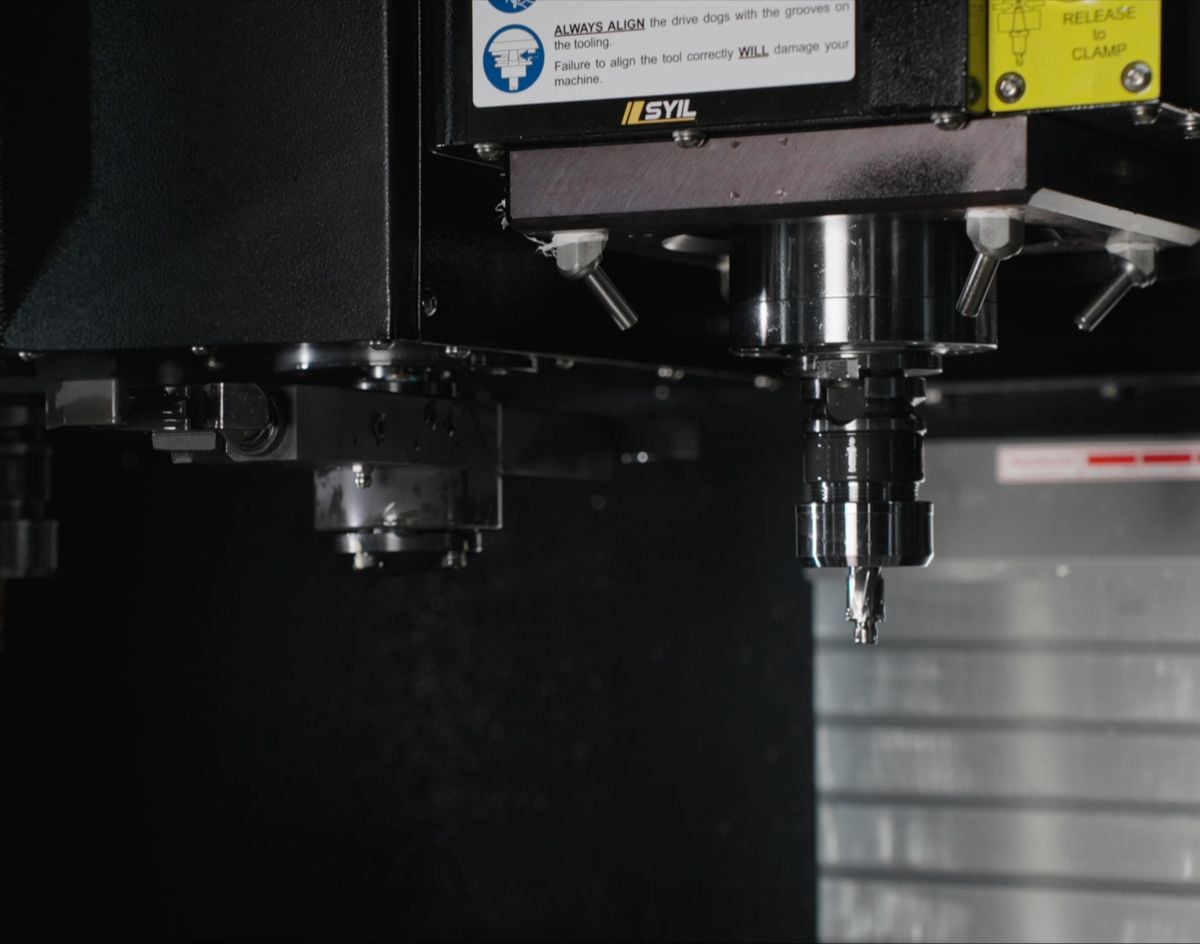

THK

High-precision ball screws and linear guides

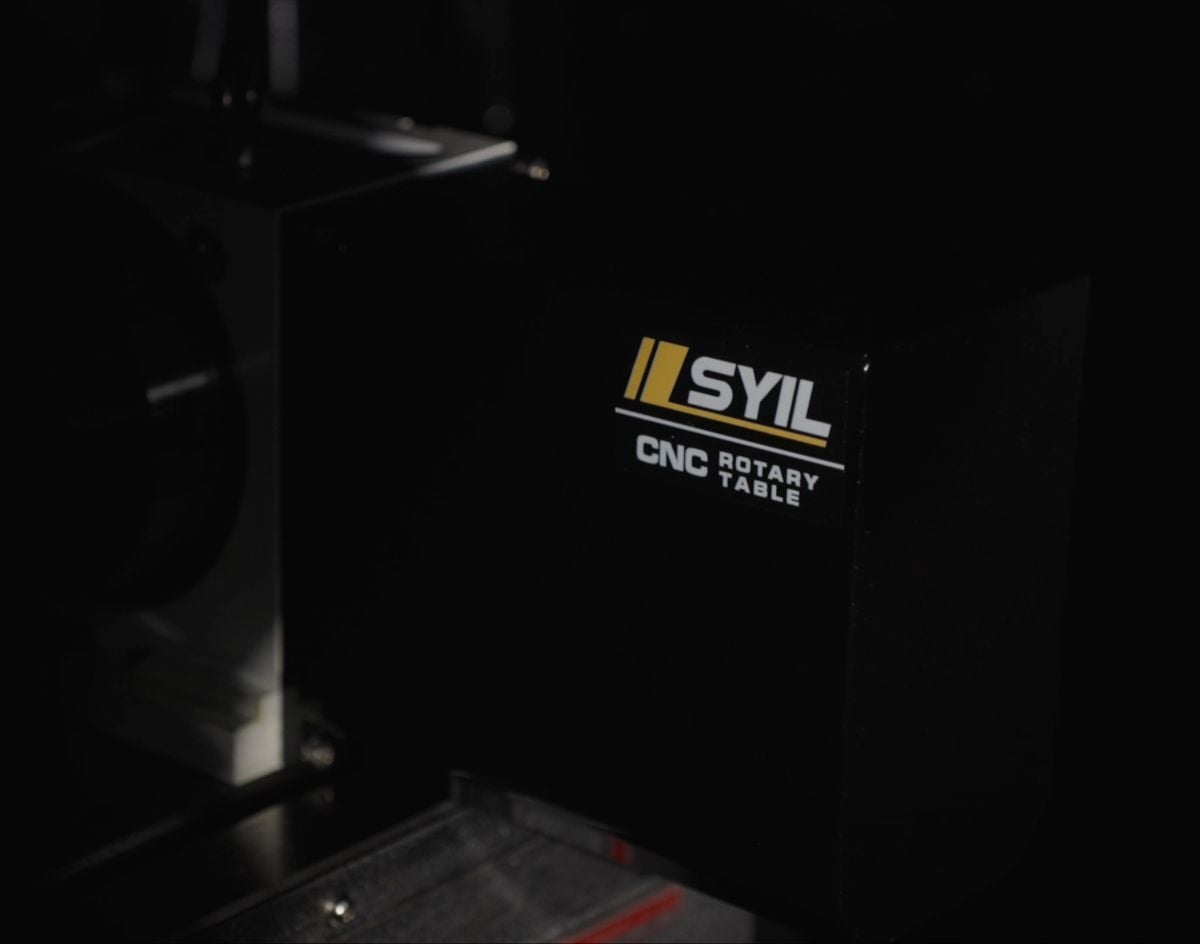

4th axis

Optional 4th axis

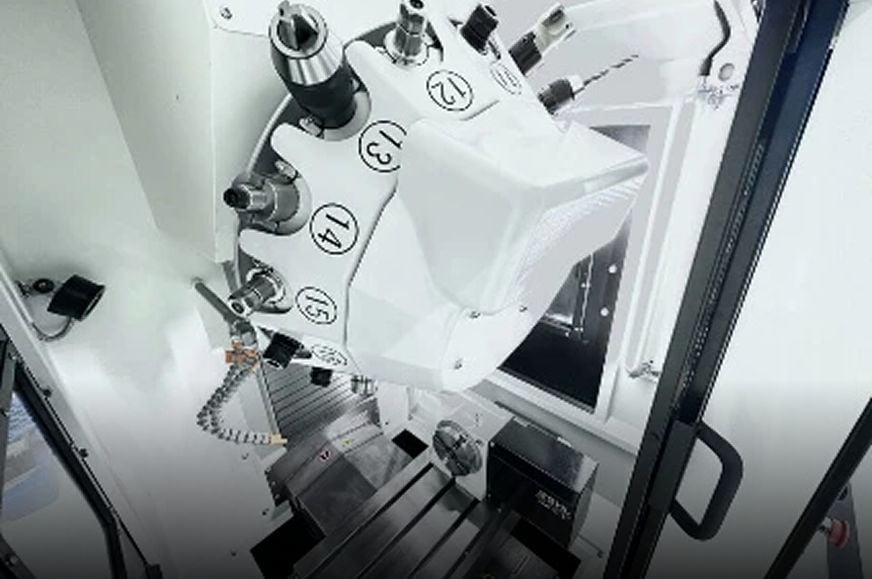

High-speed Servo Tool Changer

16-pocket BT30

SYIL X7 Options

Discover the versatile SYIL X7 mini mill, perfect for hobbyists and professionals. Compact design, high precision, and affordable pricing.

4th Axis NC Rotary Table

125mm.

Tail Stock

for 125mm NC Rotary Table.

Probe System

Wireless type.

Tool Setter

Cable type TTC200.

Filtermist

S800.

Technical Specifications

logo
X5
X7
X9
X11
Table
Table size (mm)
560×260
700×300
860×500
1050×550
Table load (kg)
150
150
500
600
Table surface (number×size×distance in mm)
T-slots 3×14×80
T-slots 3×14×100
T-slots 18×5×100
T-slots 18×5×90
Travel distances
X-axis (mm)
300
400
760
1000
Y-axis (mm)
260
300
500
500
Z-axis (mm)
300
380
500
500
Distance from spindle nose to table top
150-450
150-530
100-600
110-610
Distance between spindle and column surface
330
358
530
650
Spindle
Spindle taper
BT30
BT30
BT40
BT40
Power-drive
Direct
Belt
Belt
Belt
Max. spindle speed (rpm)
20,000
12,000
10,000
10,000
Feed
Rapid traverse (mm / min)
30,000
30,000
30,000
30,000
Cutting feed (mm / min)
10,000
10,000
10,000
10,000
Automatic tool changer
Type
Wheel
Arm
Arm
Arm
Tool holder
BT30
BT30
BT40
BT40
Tool storage capacity
16
16
24
24
Max. tool diameter (mm)
63
63
125
125
Max. tool length (mm)
200
200
240
300
Max. tool weight (kg)
3
3
7
7
Tool to tool (s)
1
1.5
2
2.5
Other data
Machine weight (kg)
2180
2200
5000
7000
Machine dimensions L x W x H (mm)
Footprint including coolant tank and controller
2020×1000×2360
1800×1600×2250
1850×2245×2800
2600×2150×2500
Min/max air pressure (MPa (psi))
0.4/0.8 (60/120)
0.4/0.8 (60/120)
0.4/0.8 (60/120)
0.4/0.8 (60/120)
Coolant tank capacity (Liters)
80
80
130
240
