Processing capabilities
Maximum processing bar diameter(mm)
Φ20 mm
Spindle through hole diameter(mm)
ø25 mm
Maximum processing length(mm) (No guide bushing)
2.5D (maximum 50 mm)
Maximum processing length(mm) (Fixed guide sleeve)
220 mm (optional)
Maximum processing length(mm) (Rotary guide sleeve)
180 mm
Maximum clamping diameter of back spindle(mm)
Φ20 mm
Maximum drilling diameter of spindle(mm)
Φ10 mm
Processing capabilities
Maximum tapping diameter of spindle
M10
Maximum drilling diameter of back spindle(mm)
Φ10 mm
Maximum tapping diameter of back spindle
M10
Maximum drilling diameter of radial live tool(mm)
Φ8 mm
Maximum tapping diameter of radial live tool
M6
Maximum drilling diameter of back powered tool(mm)
Φ8 mm (optional)
Maximum tapping diameter of back powered tool
M6(optional)
Mechanical capabilities
Spindle speed(r/min)
10000 r/min (rotary guide sleeve 8000)
Back spindle speed(r/min)
10000 r/min
Radial live tool speed(r/min)
6000 r/min
Back live tool speed(r/min)
6000 r/min (optional)
Rapid moving speed(m/min)
24 m/min (X2, Y1, Z1, Z2)
Rapid moving speed(m/min)
20 m/min (X1)
Spindle runout(mm)
≤0.002 mm
Repeat positioning accuracy(mm)
≤0.003 mm
Tool system
External cylindrical tools
1(□16)+6(□12)
End face machining tools
4(ER16)
Radial live tools
2(ER11)+3(ER16)
Deep hole tool holder
2(ER16, optional)
Back machining tools
4(ER16)
Back powered tool
Optional
Back turning tool holder
none
Motor power
Spindle(kw)
6.5 kW
Linear drive shaft(kw)
1 kW (Siemens: 0.94)
Radial live tool(kw)
1 kW (Siemens: 0.94)
Back live tool(kw)
1 kW (Siemens:0.94)(Optional)
Cooling pump(kw)
0.4 kW
Others
Size (mm)
2565×1350×1850 mm
Weight (kg)
2900 kg

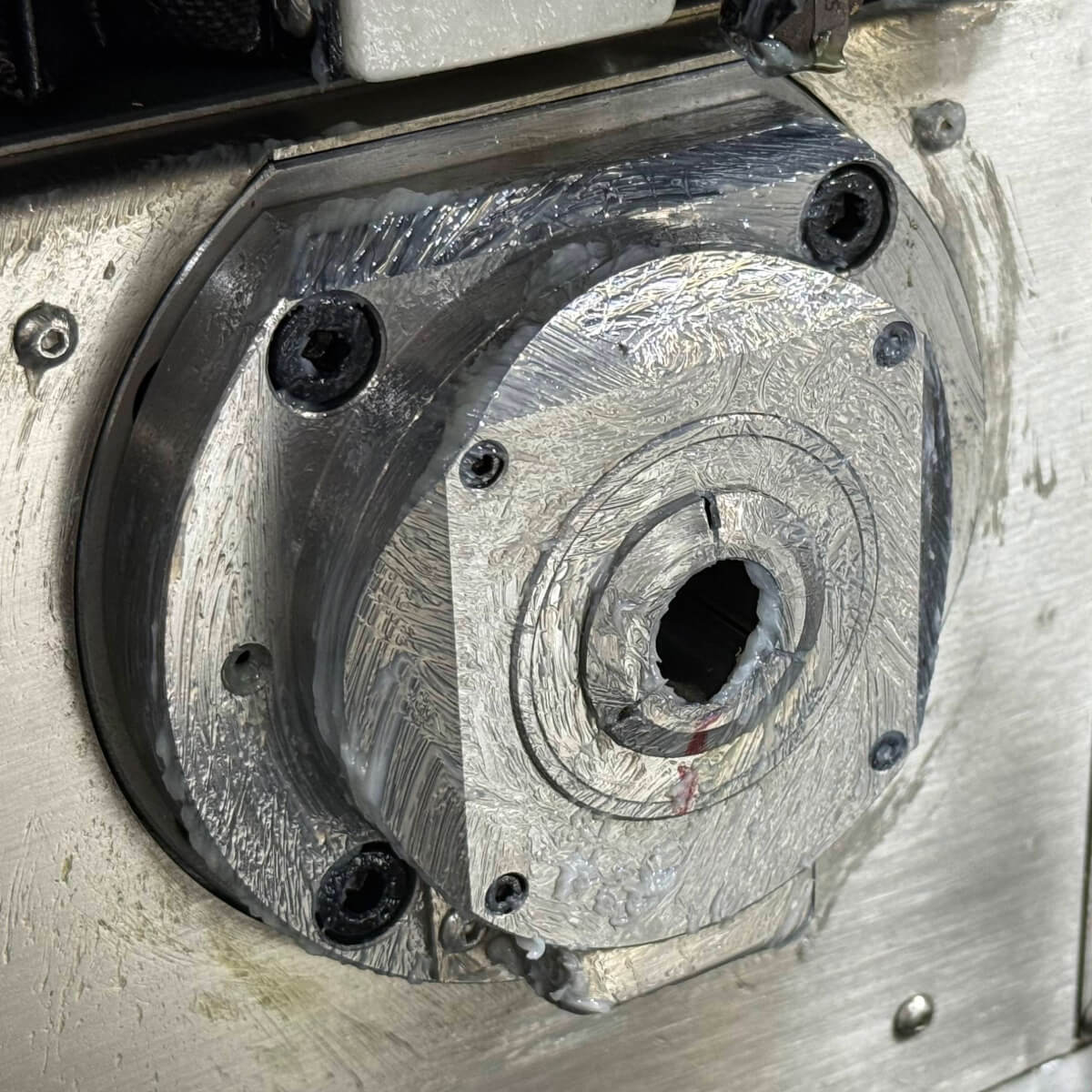

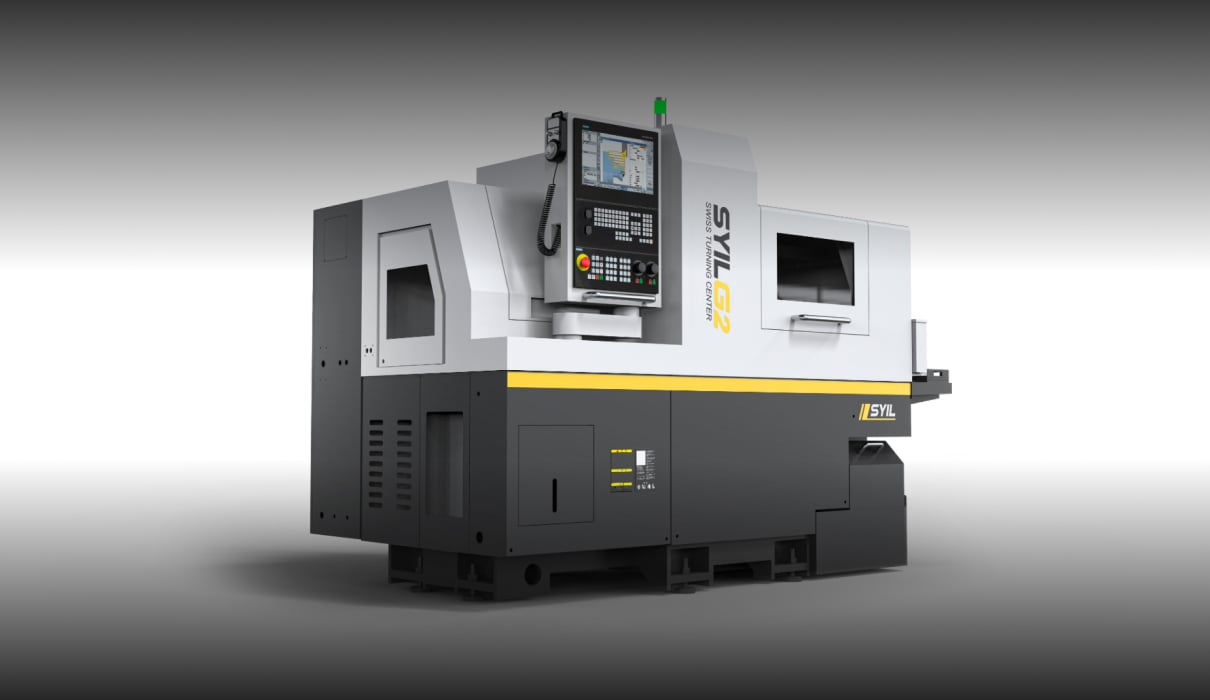

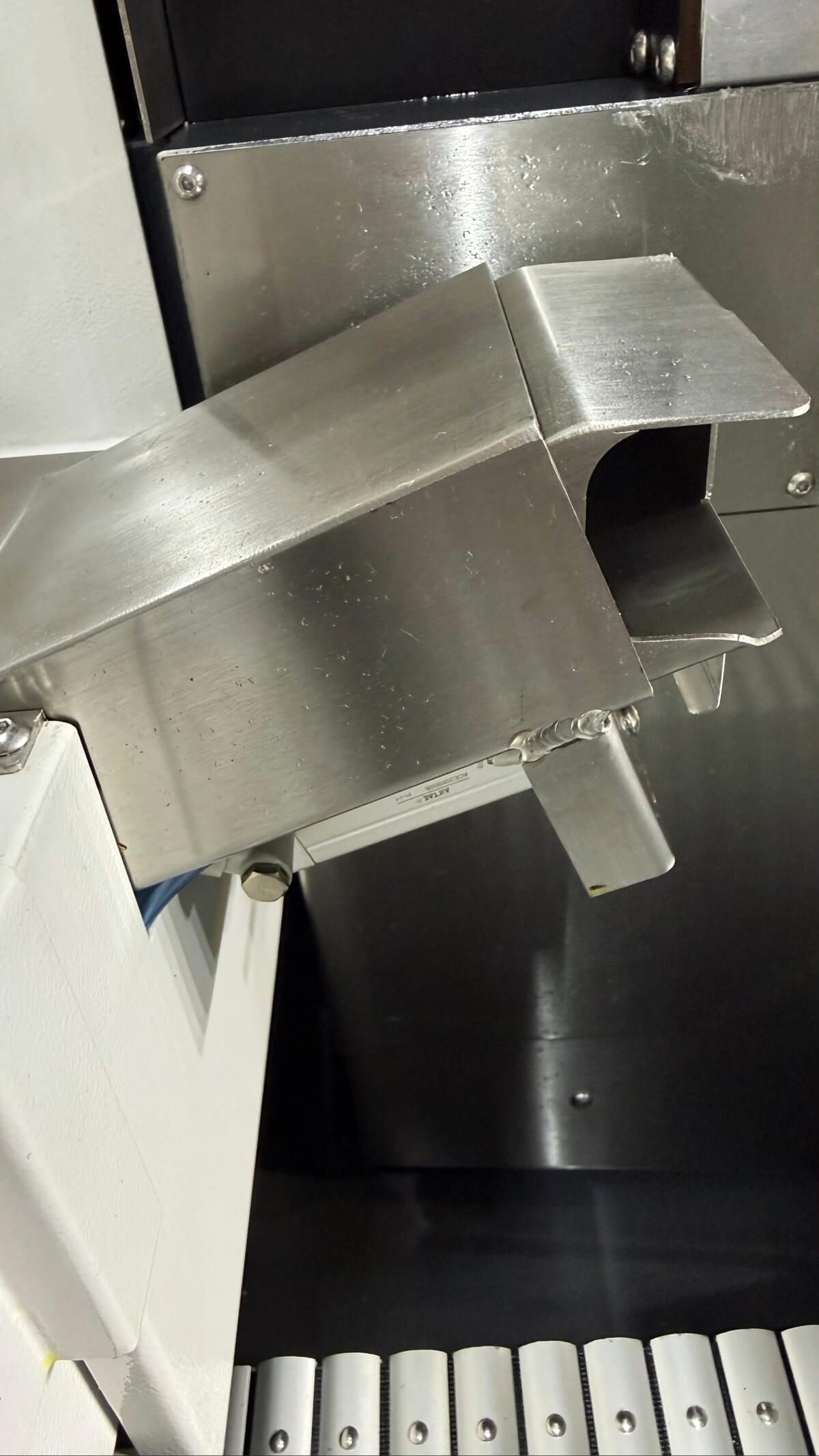

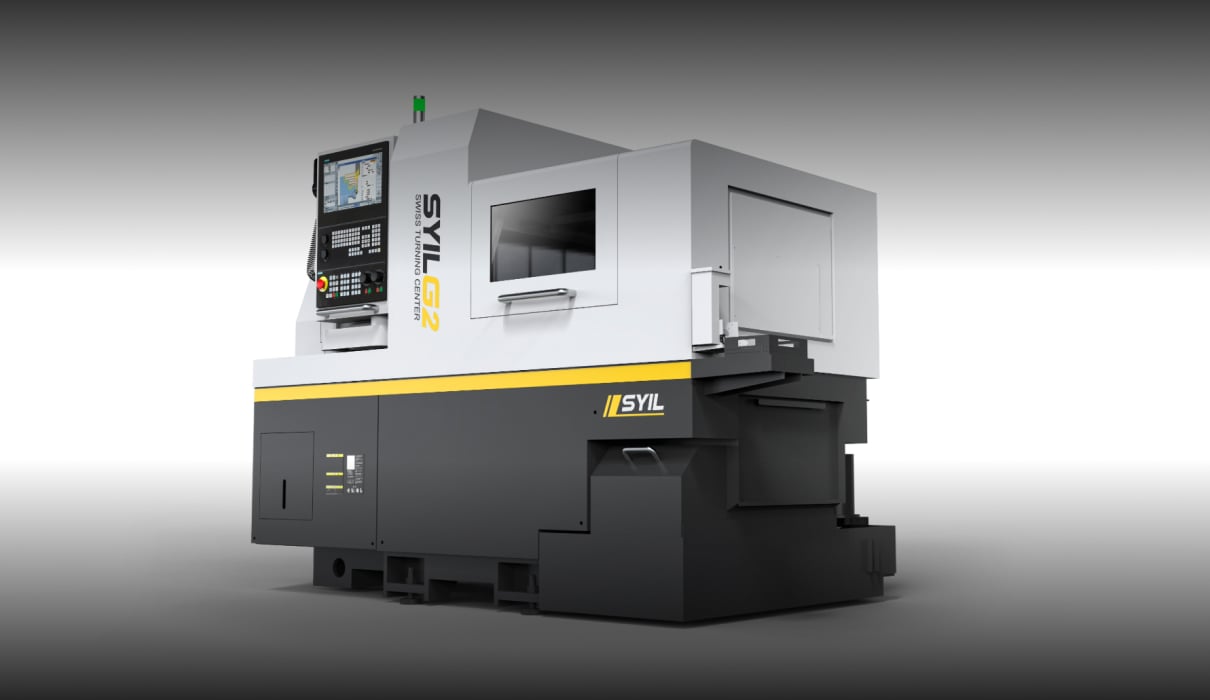

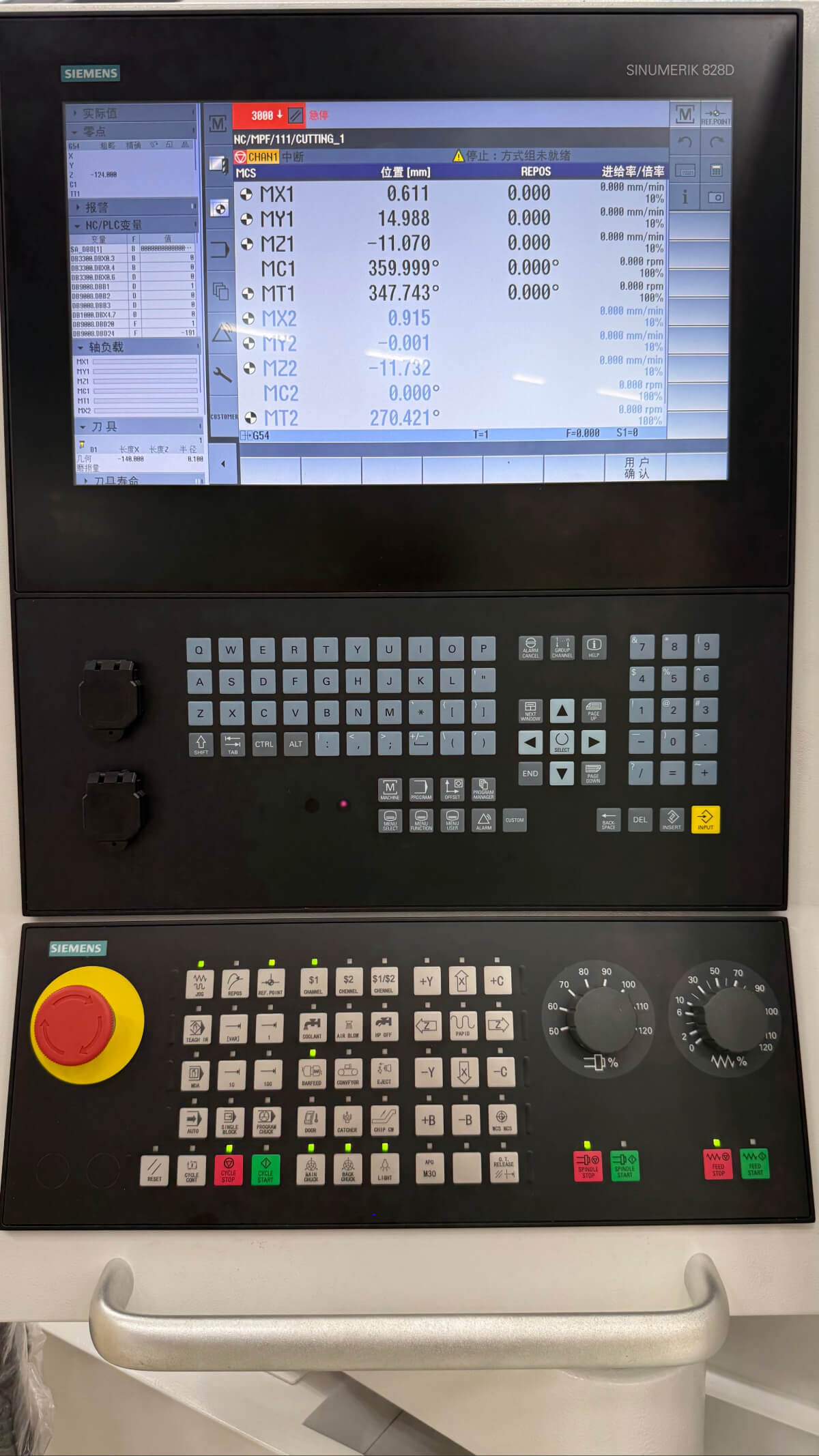

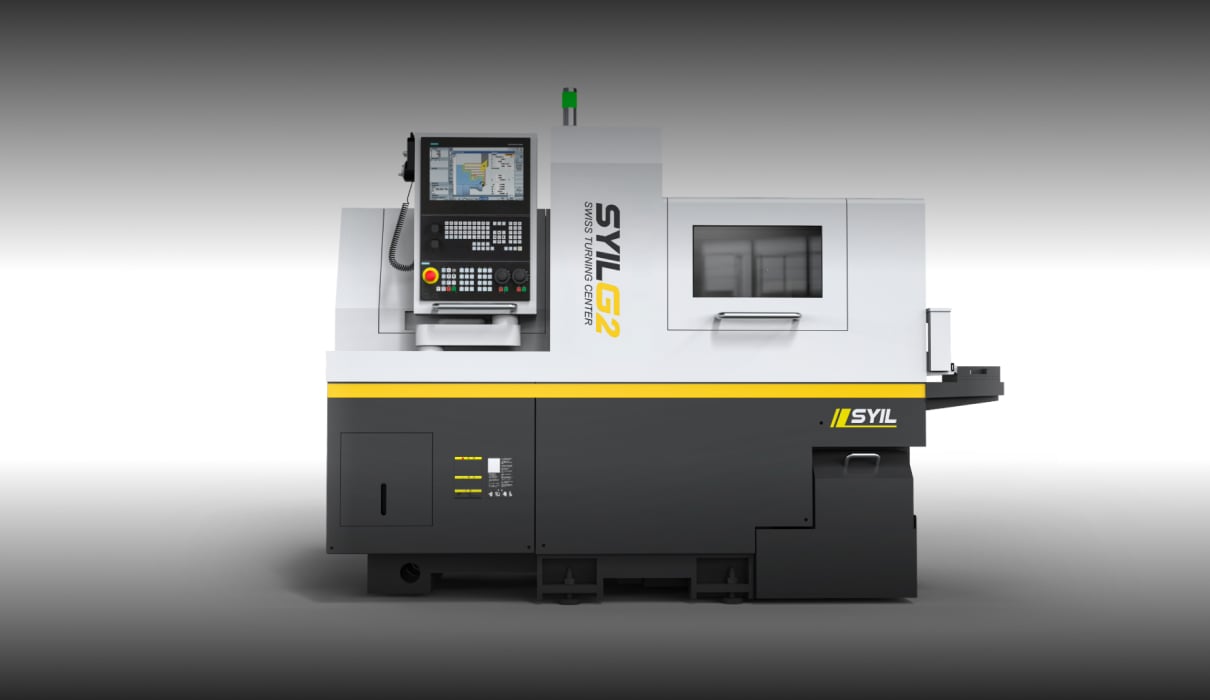

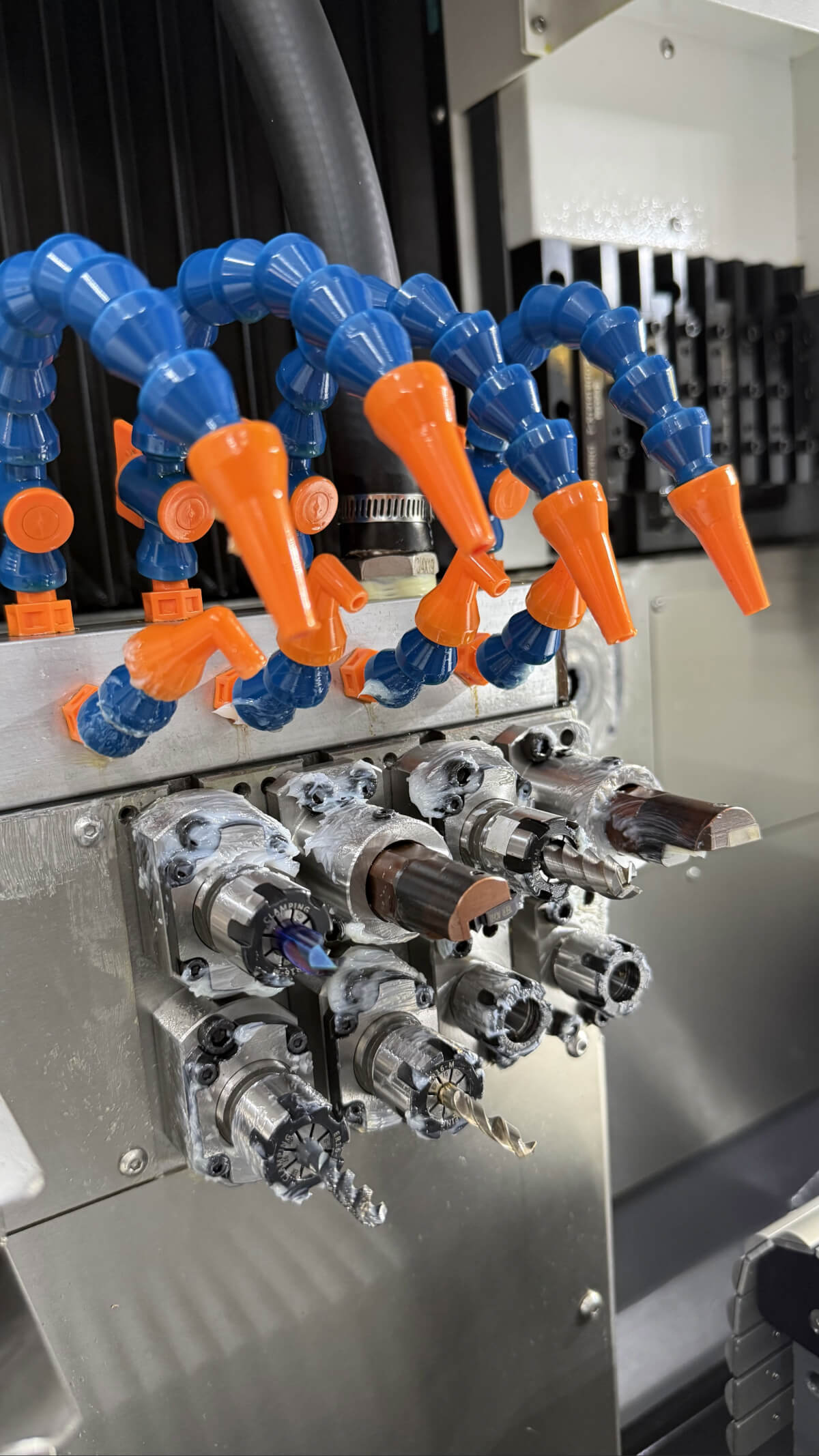

SYIL G2 Features
Ideal for machining small and long parts with exceptional precision and stability.
Technical Specifications
G2 L205
G2 L265
G2 205
G2 206
G2 265
G2 266
Processing capabilities
Maximum processing bar diameter(mm)
Φ20
Φ26
Φ20
Φ20
Φ26
Φ26
Spindle through hole diameter(mm)
Φ25
Φ30
Φ25
Φ25
Φ30
Φ30
Maximum processing length(mm) (No guide bushing)
2.5D(maximum 50)
2.5D(maximum 50)
2.5D(maximum 50)
2.5D(maximum 50)
2.5D(maximum 50)
2.5D(maximum 50)
Maximum processing length(mm) (Fixed guide sleeve)
220(optional)
220(optional)
220(optional)
220(optional)
220(optional)
220(optional)
Maximum processing length(mm) (Rotary guide sleeve)
180
180
180
180
180
180
Maximum clamping diameter of back spindle(mm)
Φ20
Φ20
Φ20
Φ20
Φ20
Φ20
Maximum drilling diameter of spindle(mm)
Φ10
Φ10
Φ10
Φ10
Φ10
Φ10
Maximum tapping diameter of spindle
M10
M10
M10
M10
M10
M10
Maximum drilling diameter of back spindle (mm)
Φ10
Φ10
Φ10
Φ10
Φ10
Φ10
Maximum tapping diameter of back spindle
M8
M8
M10
M10
M10
M10
Maximum drilling diameter of radial live tool(mm)
Φ8
Φ8
Φ8
Φ8
Φ8
Φ8
Maximum tapping diameter of radial live tool
M6
M6
M6
M6
M6
M6
Maximum drilling diameter of back powered tool(mm)
Φ8(optional)
Φ8(optional)
Φ8(optional)
Φ8
Φ8(optional)
Φ8
Maximum tapping diameter of back powered tool
M6(optional)
M6(optional)
M6(optional)
M6
M6(optional)
M6
Mechanical capabilities
Spindle speed(r/min)
10000(rotary guide sleeve 8000)
10000(rotary guide sleeve 8000)
10000(rotary guide sleeve 8000)
10000(rotary guide sleeve 8000)
10000(rotary guide sleeve 8000)
10000(rotary guide sleeve 8000)
Back spindle speed(r/min)
10000
10000
10000
10000
10000
10000
Radial live tool speed(r/min)
5000
5000
6000
6000
6000
6000
Back live tool speed(r/min)
6000 (optional)
6000 (optional)
6000 (optional)
6000
6000 (optional)
6000
Rapid moving speed(m/min)
24(X2, Y1, Z1, Z2)
24(X2, Y1, Z1, Z2)
24(X2, Y1, Z1, Z2)
24(X2, Y1, Z1, Z2)
24(X2, Y1, Z1, Z2)
24(X2, Y1, Z1, Z2)
Rapid moving speed(m/min)
20(X1)
20(X1)
20(X1)
20(X1, Y2)
20(X1)
20(X1, Y2)
Spindle runout(mm)
≤0.002
≤0.002
≤0.002
≤0.002
≤0.002
≤0.002
Repeat positioning accuracy(mm)
≤0.003
≤0.003
≤0.003
≤0.003
≤0.003
≤0.003
Tool system
External cylindrical tools
1(□16)+5(□12)
1(□16)+5(□12)
1(□16)+6(□12)
1(□16)+6(□12)
1(□16)+6(□12)
1(□16)+6(□12)
End face machining tools
4(ER16)
4(ER16)
4(ER16)
4(ER16)
4(ER16)
4(ER16)
Radial live tools
2(ER11)+2(ER16)
2(ER11)+2(ER16)
2(ER11)+3(ER16)
2(ER11)+3(ER16)
2(ER11)+3(ER16)
2(ER11)+3(ER16)
Deep hole tool holder
4(ER16)+1(Φ20)
4(ER16)+1(Φ20)
2(ER16, optional)
2(ER16, optional)
2(ER16, optional)
2(ER16, optional)
Back machining tools
--
--
4(ER16)
4(ER16)
4(ER16)
4(ER16)
Back powered tool
--
--
Optional
4(ER16)
Optional
4(ER16)
Back turning tool holder
--
--
none
2(□16, optional)
none
2(□16, optional)
Motor power
Spindle(kw)
4.2
4.2
4.2
4.2
4.2
4.2
Back spindle(kw)
3.1
3.1
4.2
4.2
4.2
4.2
Linear drive shaft(kw)
1 (X1, X2, Y1, Z1) 0.75(Z2)
1 (X1, X2, Y1, Z1) 0.75(Z2)
1(Siemens: 0.94)
1(Siemens: 0.94)
1(Siemens: 0.94)
1(Siemens: 0.94)
Radial live tool(kw)
1
1
1(Siemens: 0.94)
1(Siemens: 0.94)
1(Siemens: 0.94)
1(Siemens: 0.94)
Back live tool(kw)
0.75
0.75
1(Siemens:0.94)(Optional)
1(Siemens:0.94)
1(Siemens:0.94)(Optional)
1(Siemens:0.94)
Cooling pump(kw)
0.4
0.4
0.4
0.4
0.4
0.4
Weight and size
Weight (kg)
2400
2400
2900
3000
2900
3000
Size (mm)
2380x1300x1770
2380x1300x1770
2565x1350x1850
2565x1350x1850
2565x1350x1850
2565x1350x1850
