Inside the New SYIL X7: Compact Footprint, Bigger Usability, Same Proven Core

If you’ve ever tried to site a serious vertical mill in a space that wasn’t designed for it, you know performance is more than feeds and speeds. It’s about ceiling height, aisle clearance, sightlines, reach, and how quickly an operator can set up, check and clean down between jobs. The new SYIL X7 was reworked around those realities — without changing the core that made it a compact-class benchmark.

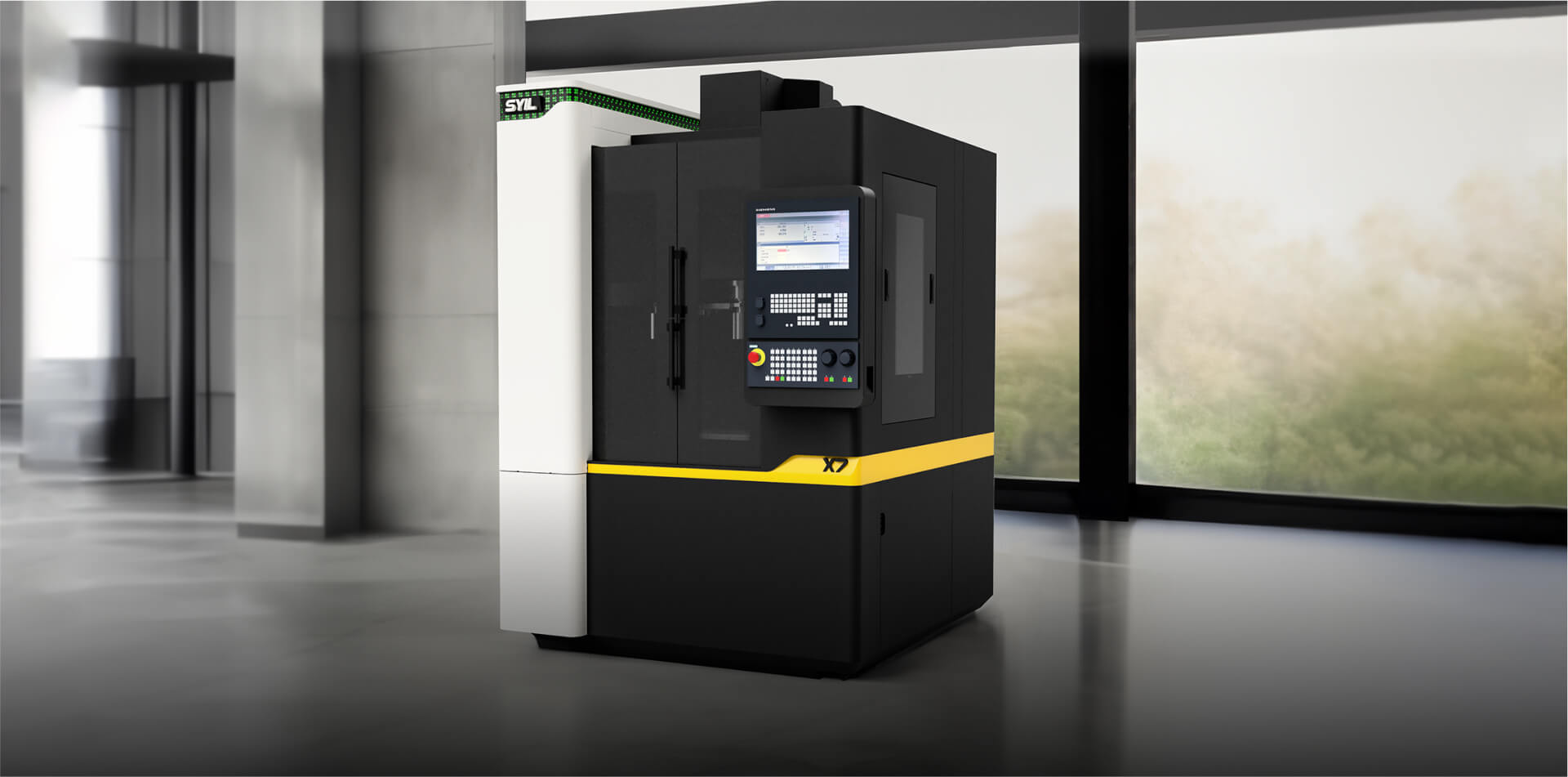

The headline is the enclosure. Premiered at EMO 2025, the overall height is now 2180 mm — and just 2100 mm with the signal tower removed — making life easier under low ducting and lighting. Larger side windows improve line-of-sight to the magazine and cutting area, and taller doors reduce awkward reach when loading vises, fixtures or parts. These are subtle upgrades that save minutes on every setup and give supervisors a clearer view across multiple machines.

Under the skin, it’s the X7 you know. Siemens SINUMERIK 828D comes standard, backed by SINAMICS drives and SIMOTICS motors for responsive motion control. The structure is SCHNEEBERGER mineral casting for stiffness and thermal stability, while THK ball screws and linear guides keep motion smooth and accurate. It’s a premium, well-understood stack that cuts beautifully and lasts.

In terms of capacity, the X7 sits in the sweet spot for prototyping, fixtures, medical, electronics and general jobbing. You get 400 × 300 × 380 mm travels on a 700 × 300 mm table, a 12,000 rpm BT30 spindle, and a standard 16-position servo ATC, delivering faster tool changes and support for larger toolsets to meet tighter cycle targets. Rapid traverse of 30,000 mm/min with 10,000 mm/min cutting feed keeps cycle times competitive, yet the machine remains compact at 1800 × 1600 × 2250 mm and around 2200 kg — easy to place, easy to service.

Day-to-day, the enclosure changes are what you feel most. The taller front openings reduce the gymnastics at setup. Clearer sightlines through the side windows cut down on door-open checks. Integrated cabinets keep nothing protruding into narrow aisles, and access to chips and coolant paths is cleaner — which makes maintenance quicker and safer for operators. Add the updated 15-inch 828D display and you get more room for programs, tool data and diagnostics on the screen, which reduces errors and makes coaching new operators at the panel simpler.

If you need to scale, the platform grows with you. Configure the high-speed 16-tool servo changer, add a 125 mm 4th-axis rotary and pair probing with a tool setter to standardize processes across shifts. Because these are factory options, you adapt the machine to your work rather than the other way around.

Quick Spec Snapshot

• Travels: 400 × 300 × 380 mm; table: 700 × 300 mm, 150 kg load.

• Spindle: BT30, 12,000 rpm; rapids/cutting feed: 30,000 / 10,000 mm/min.

• Size/weight: 1800 × 1600 × 2250 mm; ~2200 kg.

Ordering and Availability

The new X7 is available to order now, with first shipments beginning January 2026. To reserve a build slot or see the enclosure in person, visit: https://www.syil.com/x7.
