46 Parts (BOM) List (Clone)

No

Description

Quantity

Remark

1

head casting

1

2

spindle motor

1

3

Hexagon socket cup HD screws m10x40

4

fix spindle motor

4

m10 spring washers

4

fix spindle motor

5

m10 plain washers

4

fix spindle motor

6

motor fix plate

1

7

Hexagon socket cup HD screws m10x40

4

fix plate on casting

8

synchronous pulley

1

9

belt

1

10

bt30 spindle

1

11

drawbar

1

12

Hexagon socket cup HD screws m10x55

4

fix drawbar

13

m10 spring washers

4

fix drawbar

14

m10 plain washers

4

fix drawbar

15

drawbar fix plate

1

16

bushing

4

fix plate on casting

17

Hexagon socket cup HD screws m10x30

4

fix plate on bushing

18

oil drain

1

19

slider

4

x axis liner guideway

20

Hexagon socket cup HD screws m6x30

16

fix slider

No

Description

Quantity

Remark

1

table

1

2

x axis ball screw support

1

fix nut of ball screw

3

x axis liner guideway

2

4

Hexagon socket cup HD screws M5x20

28

fix liner guideway

5

parallel pin

28

fix liner guideway

6

Hexagon socket flat head screws M5x15

28

fix liner guideway

7

X axis front cover

1

8

X axis right cover

1

9

X axis left cover

1

10

X axis back cover

1

11

oil drain

1

No

Description

Quantity

Remark

1

saddle

1

2

slider

4

x axis liner guideway

3

Hexagon socket cup HD screws m6x30

16

fix slider

4

X axis servo motor

1

5

Hexagon socket cup HD screws m8x35

4

fix motor

6

m8 spring washers

4

fix motor

7

X axis motor bracket

1

8

Hexagon socket cup HD screws m10x45

6

fix motor bracket

9

m10 spring washers

6

fix motor bracket

10

m10 plain washers

6

fix motor bracket

11

pin 8x40

2

position motor bracket

12

bearing

2

13

coupling

1

14

bushing

1

15

Hexagon socket cup HD screws m5x20

2

fix bushing

16

X axis ball screw

1

17

Hexagon socket cup HD screws m5x16

6

fix x axis ball screw

18

bearing bracket

1

19

Hexagon socket cup HD screws m10x45

1

fix bearing bracket

20

m10 spring washers

1

fix bearing bracket

21

m10 plain washers

1

fix bearing bracket

22

pin 8x40

2

position motor bracket

23

bearing

1

24

slider

4

Y axis liner guideway

25

Hexagon socket cup HD screws m8x30

8

fix slider

26

Hexagon socket cup HD screws m6x30

8

fix slider

27

oil drain

1

1

base

1

2

Y axis servo motor

1

3

Hexagon socket cup HD screws m8x35

4

fix motor

4

m8 spring washers

4

fix motor

5

Y axis motor bracket

1

6

Hexagon socket cup HD screws m10x45

6

fix motor bracket

7

m10 spring washers

6

fix motor bracket

8

m10 plain washers

6

fix motor bracket

9

pin 8x40

2

position motor bracket

10

bearing

2

11

coupling

1

12

bushing

1

13

Hexagon socket cup HD screws m5x20

2

fix bushing

14

Y axis ball screw

1

15

Hexagon socket cup HD screws m5x16

6

fix x axis ball screw

16

bearing bracket

1

17

Hexagon socket cup HD screws m10x45

1

fix bearing bracket

18

m10 spring washers

1

fix bearing bracket

19

m10 plain washers

1

fix bearing bracket

20

pin 8x40

2

position motor bracket

21

bearing

1

22

y axis liner guideway

2

23

Hexagon socket cup HD screws M5x20

24

fix liner guideway

24

parallel pin

24

fix liner guideway

25

Hexagon socket flat head screws M5x15

24

fix liner guideway

26

screw m24x1.5

3

for feet

27

feet

3

28

Forklift frame

1

for forklift

29

Y axis front cover

1

30

Y axis right cover

1

connect front and back

31

Y axis left cover

1

connect front and back

32

Y axis back cover

1

1

column

1

2

Z axis servo motor

1

3

Hexagon socket cup HD screws m8x35

4

fix motor

4

m8 spring washers

4

fix motor

5

Z axis motor bracket

1

6

Hexagon socket cup HD screws m10x45

6

fix motor bracket

7

m10 spring washers

6

fix motor bracket

8

m10 plain washers

6

fix motor bracket

9

pin 8x40

2

position motor bracket

10

bearing

2

11

coupling

1

12

bushing

1

13

Hexagon socket cup HD screws m5x20

2

fix bushing

14

Z axis ball screw

1

15

Hexagon socket cup HD screws m5x16

6

fix x axis ball screw

16

bearing bracket

1

17

Hexagon socket cup HD screws m10x45

1

fix bearing bracket

18

m10 spring washers

1

fix bearing bracket

19

m10 plain washers

1

fix bearing bracket

20

pin 8x40

2

position motor bracket

21

bearing

1

22

Z axis liner guideway

2

23

Hexagon socket cup HD screws M5x20

24

fix liner guideway

24

parallel pin

24

fix liner guideway

25

Hexagon socket flat head screws M5x15

24

fix liner guideway

26

Z cover

27

Hexagon socket flat head screws M20x55

fix column on base

28

m20 spring washers

fix column on base

29

m20 plain washers

fix column on base

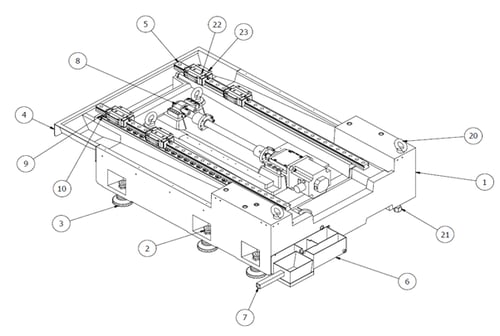

No

Description

Quantity

1

BASE

1

2

Screw m36x2+feet

7

3

feet

7

4

Water drop part

1

5

Y axis liner guideway

1

6

Oil collect A

1

7

Oil collect B

1

8

Y axis combination

1

9

guideway block

52

10

Hexagon socket screws

52

20

M24 ring

4

21

M30x80L

3

22

M12x50L

8

23

M12x60L

16

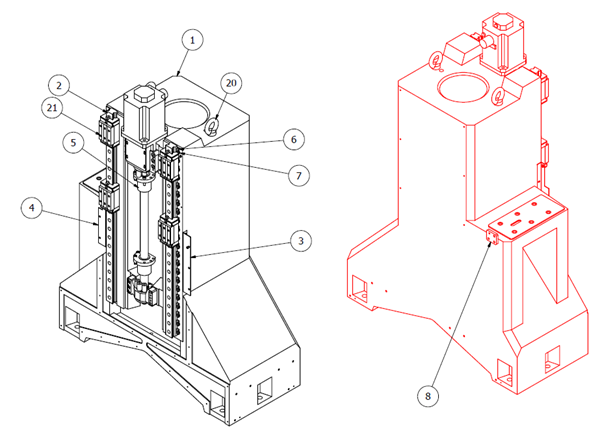

No

Description

Quantity

1

COLUMN

1

2

Z axis liner guideway

2

3

Right cover support

1

4

Left cover support

1

5

Z axis combination

1

6

guideway block

44

7

Hexagon socket screws

44

8

ATC support adjust block

1

20

M24 ring

2

21

M10*60

24

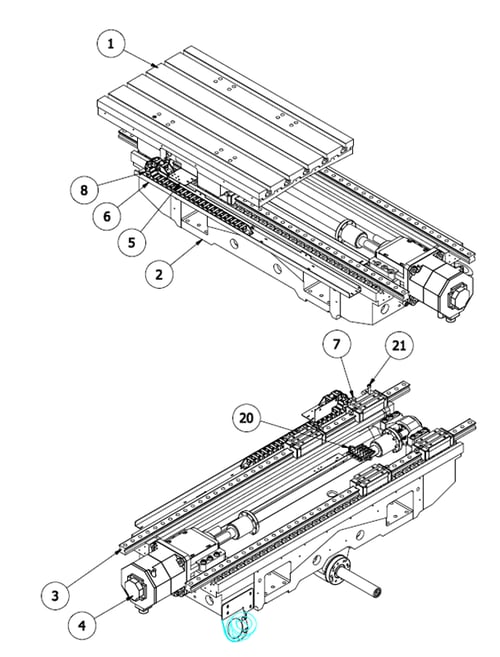

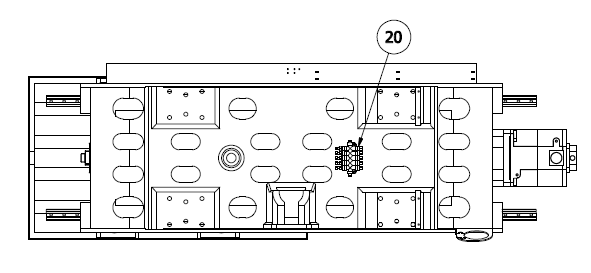

No

Description

Quantity

1

Work table

1

2

Saddle

1

3

X axis linear guideway

2

4

X axis combination

1

5

Oil line fix upside

1

6

Oil line fix downside

1

7

T2 guideway block

68

20

HBL-5

2

21

M8x40 Hexagon socket screws

24

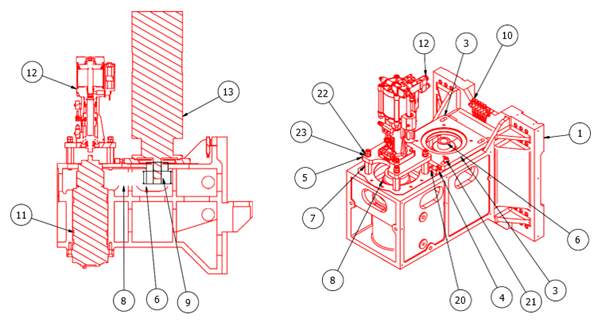

No

Description

Quantity

1

Head

1

2

3

Motor fix board

1

4

Motor adjust block

2

5

Drawbar fix plate

1

6

1

7

Plate support 64L

4

8

Belt 880-5GT-40W

1

9

1

10

HBL-5

1

11

Spindle

1

12

Drawbar

1

13

Spindle motor

1

20

M10 x 35 Hexagon socket screws

2

21

M12x40

4

22

M12 nut

8

23

M12 plain washers

8

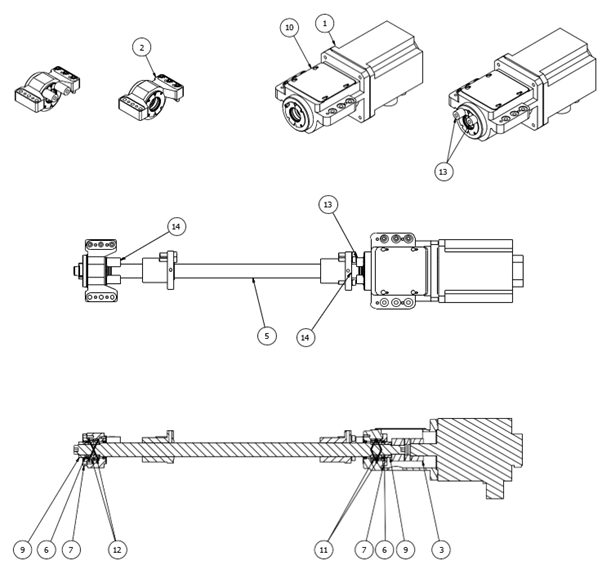

No

Description

Quantity

1

Motor support

1

2

Bearing support

1

3

1

4

5

X ballscrew

1

6

Spacer

2

7

Bearing cover

2

8

9

YSF30xP1.5

2

10

Cover

1

11

30tac62b DB

1

12

30tac62b DF

1

13

Anti collision pad

2

14

Anti collision pad

2

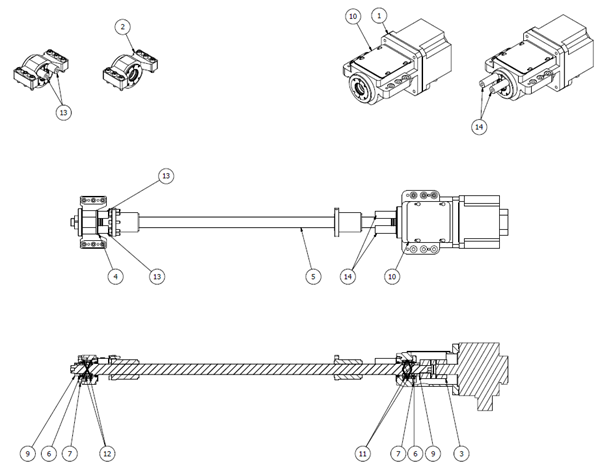

No

Description

1

Motor support

1

2

Bearing support

1

3

1

5

Y ballscrew

1

6

Spacer

2

7

Bearing cover

2

9

YSF30xP1.5

2

10

Cover

1

11

30tac62b DB

1

12

30tac62b DF

1

14

Anti collision pad

2

15

Anti collision pad

2

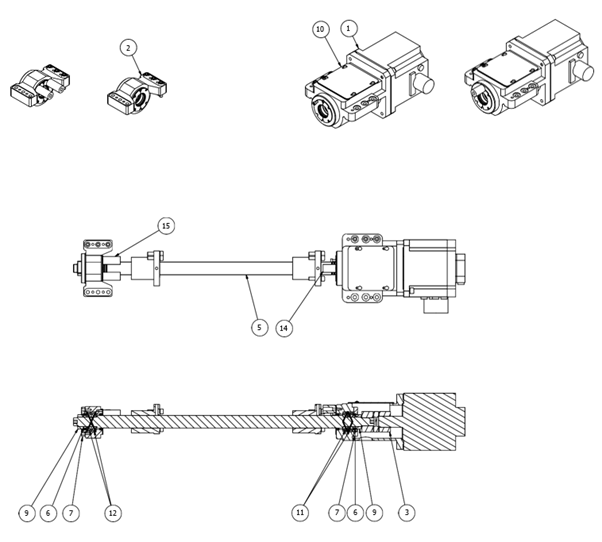

No

Description

Quantity

1

Motor support

1

2

Bearing support

1

3

1

5

Z ballscrew

1

6

Spacer

2

7

Bearing cover

2

9

YSF30xP1.5

2

10

Cover

1

11

30tac62b DB

1

12

30tac62b DF

1

13

Anti collision pad

2

14

Anti collision pad

2
