4 CUSTOM interface operation

Custom operation interface can be entered in two ways:

1. Press <CUSTOM> key in the middle of the full keyboard to enter;
2. Press <MENU SELECT> key in the lower right corner of the screen, and click [CUSTOM] soft key in the lower part of the screen to enter;

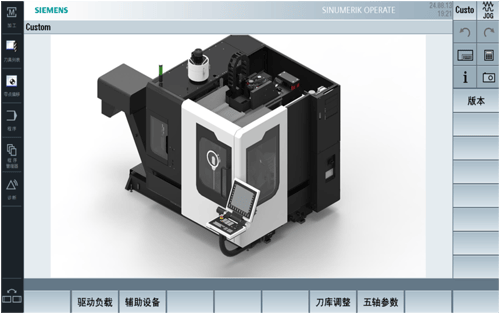

3. CUSTOM interface is as shown below:



4.1 CUSTOM interface specification

4.1.1 Driving loads: shows the use condition of driving load of each axis currently;

4.1.2 Auxiliaries:  auxiliary function operation of machine tool;

Spindle air cooling on/off

Spindle internal cooling on/off

Spindle external cooling on/off

Oil mist separator on/off

Chip conveyor forward on/off

Chip conveyor reverse inching

Machine tool door is shielded; this function is only used during maintenance and adjustment.

4.1.3 Magazine adjustment:

1. Show the current position of each axis of the magazine;
2. Set the motion parameters of each axis of the magazine;
3. Manual operation function of the magazine when tool changing process is interrupted abnormally;
4. Calibrate the magazine: this function is for professional maintenance personnel only;
5. For concrete operations, referto Tool/Workpiece System Manual;

4.1.4 Five-axis parameters:

1. Parameter setting related to five-axis RTCP：this function is for professional maintenance personnel only；
2. IMRMD: auto-correction of five-axis RTCP deviation, which is an option, used together with the workpiece probe and standard ball.
3. For concrete operations, refer to IMRMD Manual.
