27 Maintenance (Clone)

The following sections provide guidelines for the correct maintenance of SYIL X and T Series machines.

To prevent hazardous conditions that can result in injury or equipment damage, ensure that the equipment and personnel at your worksite fully satisfy these requirements.

For some procedures, to be performed, specialist tooling may be required. Contact Technical Support for advice as needed.

27.1 Lockout – Tagout

Always follow your company lockout tagout procedure in addition to the instruction given here

27.1.1 Lockout procedures and indicators

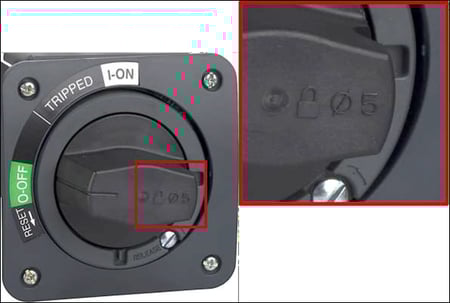

The mains isolator switch is designed to be locked out with a padlock when doing the lockout. Use a 5 mm

diameter padlock.

To prevent the possibility of accidental startup and the sudden release of accumulated energy, put the SYIL into lockout before beginning inspection and maintenance work.

During lockout, post signs to indicate the machine’s service status and prevent unauthorized personnel from accessing its main energy isolation facilities. In addition, paste labels over the closure of the electrical cabinet in such a way that opening it requires breaking or tearing them, thus indicating whether any attempt has been made to activate the equipment during lockout.

27.2 Lubrication

It is critical that the machine rolling and sliding elements remain lubricated. Failure of the lubrication system can lead to rapid damage to costly elements such as ballscrews, linear rails and sliders.

The automatic oiler is set on a timer controlled by the PLC ladder of the controller. Parameters within the service level of the controllers dictate the interval at which the oiler will run and for how long each burst is.

Always ensure the correct grade of lubricant is used in the automatic lubrication pump as indicated on the sticker above the oiler.

It is recommended that an ISO 32 grade oil is used rather than any heavier oils.

The Automatic Tool Changer, lubrication of the two roller runners is key. Use waterproof grease on the bearings and the runners.

27.3 Recommended Maintenance

The following section may be used as a list of tasks to be completed at the described time interval to ensure the SYIL X5 remains in the best condition through its life.

27.3.1 Daily

(a) Prework

Component/Function/Check

Action

Air line pressure

Check if compressed air supply is connected

With machine on, check the red and green LCD display on the pressure switch (Left side of machine)

NOTE: Large numbers must be higher than the smaller ones

Coolant level

Check coolant is visible in the sight glass

Top up until fluid level above half mark of the sight glass

Auto oiler level

Visually check there is sufficient oil in the oiler (side of the machine) and fill if needed

NOTE: Machine will give warning on the controller if below minimum and not run

Spindle at temperature

Always warm up the spindle using the supplied program. See Chapter 6.5

Run more than once if machine has not been used for more than 2 days

Tool in spindle

Check that the tool in the spindle, shown on the screen and the LED display on the controller are as expected. If they are not, this may indicate a malfunction during a tool change

Adjust as needed in the controller

Tool setter

Check the operation of the tool setter

Press the ceramic tip by hand, red LED lights on

Probe battery

Remove batteries at end of every shift

Replace them and actuate the tip. The LEDs on the probe flashes

4th axis oil level

Check the oil level in the 4th axis

NOTE: With the rotary table on the machine bed or on level surface, the oil must be visible on the sight glass

Oil trap Level

Check that the oil overflow catcher behind the machine is not full

Empty if needed

Movement of axes

Check there are no abnormal sounds while moving axes

Jog the machine axes using the MPG and the Buttons in jog mode

Use the rapid button on the axes too

Axis limits

Check that the servo positions have not altered.

Move the X, Y and Z axes to their soft limits using the MPG

NOTE: The location of the table and head at the extremities should not crash into

the enclosure or cause the servos to stall.

4th Axis orientation

Check that the 4th axis angle corresponds to where you expect it to be NOTE: Removing/Reinstalling may affect the apparent orientation on the controller

(b)  After work

Component/Function/Check

Action

Clean

Wash down the machine to remove any swarf/chips

Switch off the machine

Always switch off the machine if it is to be idle for more than 2 hours

27.3.2 Weekly

(a) Prework

Component/Function/Check

Action

All daily checks

Complete the whole series of daily checks

Empty chip tray

Remove waste material from the chip tray

Tooling and Spindle tapers

Visually inspect the tool and spindle tapers for signs of wear and fretting

Advise if significant fretting or galling has occurred

Tool holder pullstuds

Check the condition and torque of the pullstuds on the most used tools

NOTE: These should be tight and only have grease on them

Clean the coolant filter

Screens

Check and clean the two coolant filter screens that are in the mid-section of the

coolant tank

Drawbar actuation

Manually test the drawbar function using the button on the front of the spindle head

NOTE: Pull in tools and hold fast

Coolant concentration

Check the concentration of the coolant additive in the coolant using a Refractometer. Contact the supplier for advice on the correct levels

Adjust by adding mixable coolant or water as needed

(b) After work

Component/Function/Check

Action

Visual check

Check the table, ATC, Spindle, and tooling for signs of wear, damage, or swarf entrapment

Clean as needed

27.3.3 Monthly

Component/Function/Check

Action

All daily and weekly checks

Complete the whole series of daily and weekly checks

Door operation

Check that the door functions correctly:

Interlock switch works as expected and has not been tampered with

The door slides smoothly on its rails

Clean and lubricate the rails and scissor jack as needed

Electrical cabinet chiller filter

Check the filter screen on the e-cabinet filter is clean

Clean with soapy water and allow to dry

Electrical cabinet interior

Open and inspect the electrical cabinet with the power off

Look for humidity and any signs of electrical component damage

Wipe down as needed with an absorbent towel or similar

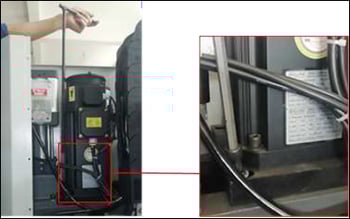

Drawbar actuator

Check the level of the drawbar actuator hydraulic oil

Using a step ladder, remove the lid of the spindle head

NOTE: The oil reservoir will be visible on the right front portion of the head

Top up as needed

Coolant quality and bacterial level

Ask your coolant supplier for details

Guarding and way armour

Inspect the way covers and armour

NOTE: The various elements run over each other smoothly

Clean any chips in the wiper seals

Toolsetter and probe calibrations

After heavy usage or a crash, recalibrate the toolsetter and wireless probe

Test or recalibrate each month

27.3.4 Annually

Component/Function/Check

Action

All daily, weekly and monthly checks

Complete the whole daily, weekly and monthly checks

Clean as needed

Clean the machine as needed

Under heavy use remove the way covers and vacuum clean

Check swarf build-up:

Around the ATC

Above the head of the machine

On the Z axis armour

Pipes and Cables

Check that the cables and pipes running in the power chain to the Z axis are in good condition

Using a step ladder and a flashlight check between the rungs

Coolant pump pressure

Check the expected coolant flow rate is being achieved through the

coolant nozzles and the washdown hose

Drawbar tension

Using a BT-30 pull stud tension measuring device ensure the tension is

within recommended limits

Machine level

Using a precision level (0.02 mm/m) check the level of the machine

Adjust as needed

Machine accuracy and backlash

Check the machine is positioning and locating accurately with any of the following methods depending on requirements:

Making a test piece

Ballbar

Manual measuring devices

Adjust the backlash compensation as required within the controller

Earth connection

Check the various sections of the machine’s enclosure are still short

circuited to the Yellow/Green Earth terminals

Vents and heat sinks

Vacuum clean any fans and heat sinks on the machine to ensure they are

functioning correctly

Fans

Check the function of the fans on the electrical cabinet and the spindle motor

Clean and advise if any blades have been damaged

27.4 Common Service and Maintenance Tasks

During the life of the machine, there will be time that the competent users may be able to perform recovery service tasks without calling up the customer service. This will allow the machine to be put back into operation with the least downtime.

Separate documentation may also be provided to the users on request to perform other tasks not described herein.

27.4.1 Levelling

In some cases, the floor under the machine may need to settle over time. Check the levelling of the machine periodically as per the Table 22.

Perform horizontal levelling in the following sequence using a spirit level with a unit scale sensitivity of 0.02 mm/m.

Stage of service life

Frequency

Two to three days after installation of the machine

Daily

Within 6 months of installation

Monthly

After 6 months have passed since installation

Quarterly

27.4.2 Rehoming the tool changer

It is not uncommon for users to press the Reset or Emergency Stop button during a tool change operation. This can result in the case that the tool change is incomplete. In some cases, the controller logic may have progressed, meaning that the tool currently in the spindle, does not correspond to the tool that the controller thinks it has.

It is always good practice to check that the tool you expect to see in the spindle, matches that shown on the LCD number display on the controller. Follow the instruction on re-referencing the tool changer based on your controller type.

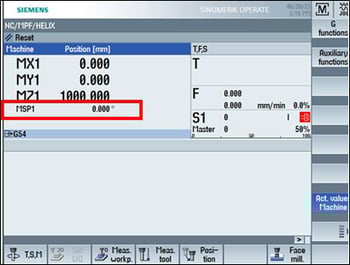

(a) Siemens 828D - Re-homing tool changer

CAUT ION

 If the ATC arm has stopped with a tool gripped or mid swing, stop and contact technical support.

Re referencing or resetting the tool changer may be necessary in instances like the following:

  • User presses the Emergency Stop button during a tool change
  • Through use the physical carousel pocket numbers do not match the ones indicated within the controller Turn the key switch to Setup or I

(b) Empty the magazine:

  1. Remove the tool within the spindle
  2. Open the right hand side of the machine
  3. Using the sheet metal tool supplied with the machine, remove the tools within the magazine
  4. Press the OFFSET button
  5. Virtually UNLOAD the tools on the controller so that the tool data is not lost

(c) Enable the tool adjust mode:

  1. Press the MENU SELECT key to display advance menus
  2. Press the Setup page softkey
  3. Press the Password softkey
  4. Type in the system Password: SUNRISE and press OK. A green tick
  5. Press the OFFSET key
  6. Scroll the bottom row of softkeys to the right pressing the menu advance key
  7. Press the Easy Extend softkey on the bottom of the screen
  8. Highlight the Tool adjust mode option on the screen
  9. Type in the passcode: 123456
  10. Press the Activate softkey to enable the ATC adjusting mode

(d) Recovering from an E-stop during a tool change:

  1. Remove the tool within the spindle
  2. Open the right hand side of the machine
  3. Using the sheet metal tool supplied with the machine, remove the tools within the magazine
  4. Press the JOG softkey
  5. Press the MAG EN softkey to allow magazine manipulation button on the MCP keyboard and check that the LED stays on
  6. If the tool pocket has stuck in the down position, press the POCKET UP/DOWN button to lift it to safe position
  7. Only if safe, press the ATC CW button to reset the ATC arm

(e) Check the rotation direction of the tool magazine:

  1. Ensure the safety door of the machine is closed and locked

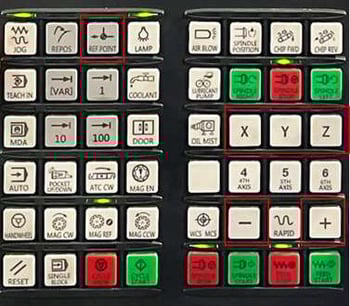

  2. Press the REF POINT button on the MCP keyboard
  3. Press the MAG EN softkey to allow magazine manipulation button on the MCP keyboard and check that the LED stays on
  4. Press the MAG CCW button and check that the magazine has advance in the Counter Clockwise direction
  5. Press the MAG CW button and check that the magazine has advance in the Clockwise direction
  6. Press the MAG REF button and check that the magazine has advanced and the Tool Pocket 1 is in the Standby position
  7. The Tool changer is now referenced

(f) Reload tools as required:

  1. Press the OFFSET softkey
  2. Select the desired tool from the Tool list
  3. Load the selected tool to the tool Pocket Location of your choice
  4. Press the OK softkey to store the tool in a pocket or spindle for loading into the spindle

(g) Reboot the controller:

  1. Press the Illuminated red switch to power down the controller
  2. Press the green illuminated ON button to restart

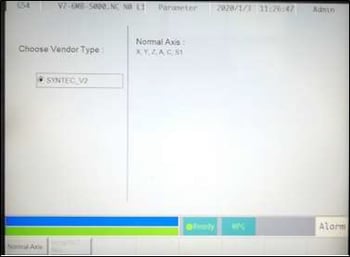

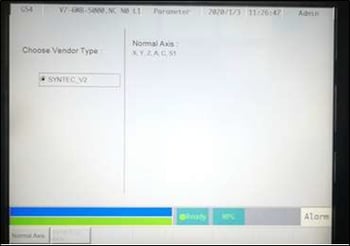

27.4.3 SYNTEC 22MA- Re-homing tool changer

  1. Remove any tool in the spindle

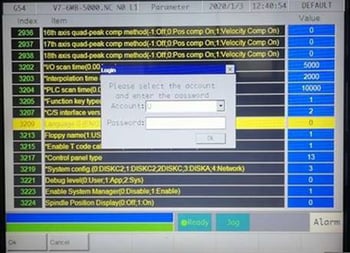

  2. Press the Setting softkey
  3. Press the Param softkey
  4. Press the Extended Param softkey

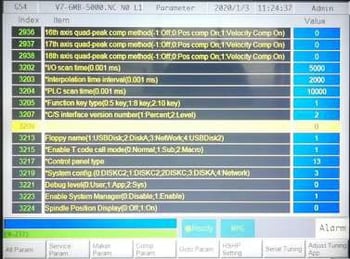

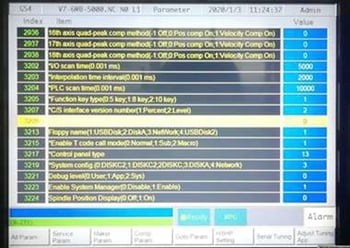

  5. Go to parameter 3415 then change the valuer from 0 to 1
  6. Type in the Password 520 and press OK
  7. An alarm pop up window appears
  8. Press the << arrow softkey to clear the alarm
  9. Press the Home key
  10. Press the F3 key on the keyboard to initiate the homing process and the rotation of the magazine to position number 1
  11. Reset parameter 3415 to 0

NOTE: The tool number will be reset to match the magazine number. If extended tool numbers have been used before, they will need to be redefined versus the pockets in the magazine.

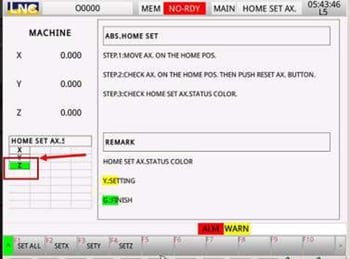

27.4.4 LNC M6800 – Tool Changer adjustment and recovery

(a) Enable the “Tool Adjust Mode”

In order for the tool changer to be safely manipulated through the control panel requires the setting of debug parameters.

  1. Move the Z axis to top soft limit with the MPG
  2. Move the Z axis down to clear the Soft Limit Warning

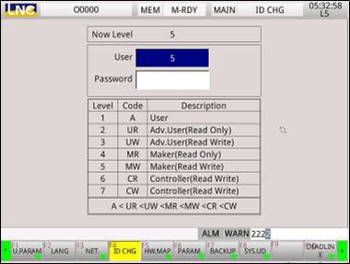

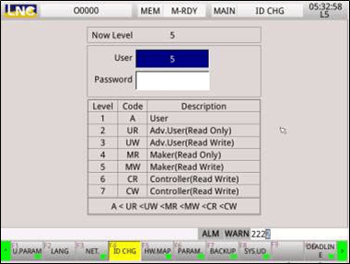

  3. Press the MAINTE key on the keyboard
  4. Type User 7
  5. Type in password 168888

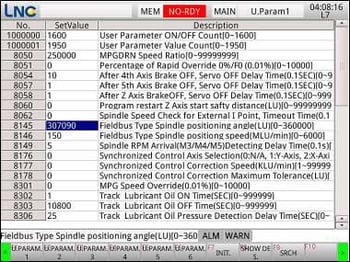

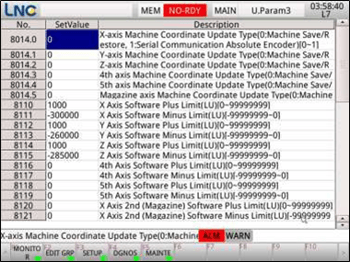

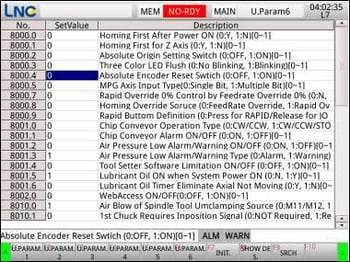

  6. Press the Param softkey
  7. Find parameter 10 ATC adjust mode active
  8. Change value of 10 to 1
  9. Press the INPUT softkey

The tool changer buttons are now active and can be used to advance, retract the tool changer or tool changer arm. Enabling the tool adjust mode allows the following function to become active using the F Keys on the keyboard Table 28: F Key functions when Tool Adjust enabled

Key

Function

F1

Tool pot up on the arm type tool changer

F2

Tool pot down on the arm type tool changer

F3

Home the ATC, also resets tool order and puts T17 into spindle

F6

Turns the ATC arm

(b) Resetting tool numbers

In the event of a failed tool change, it is possible that the tool number declared in the spindle may not be correct. For example, T1 is called in code and a different tool is installed in the spindle, or the pockets of tool changer do not correspond correctly.

CAUTION

If there is a tool in Pocket 1 of the Umbrella type tool changer, you must remove it before proceeding
  1. Enable the Tool Adjust Mode as per 6.1.1
  2. Press the F3 button on the keyboard
  3. The magazine will align pocket 1 with the spindle ready for a tool change
  4. The tool numbers registered against tool pockets will have also been reset

Reboot the controller

27.4.5 FANUC

27.5 Resetting the Home Position of Axes

All SYIL CNC machines work with absolute position servo motor, negating the need for home switches. This means that if during installation or maintenance, if the servo motors of the axes are disconnected either electrically, from the cables, or mechanically from the mounts and ballscrews, their absolute position must be reset.

This process writes the absolute encoder position to the controller such that the rotational position of the servo motor corresponds correctly to the linear location of the axis it is connected to.

The X, Y and Z axis follow the same process, while the spindle orientation, (Referred to in other service bulletins as setting the ORI position), is different.

As the Z axis is also responsible for actuating the tool changer, a separate set of steps is required for resetting the actual position of the Z axis prior to resetting the home position.

27.5.1 Finding the physical locations of Home

The Home position of each axis corresponds to a physical location along the axes of travel. It can help to remove the protective covers of the X and Y axis when attempting to reset them.

X5

The location of the X and Y Home are when the table casting is positioned at 370mm from the left enclosure wall and 370mm from the rear enclosure wall as shown in Figure 92.

X7

The location of the X and Y Home are when the table casting is positioned at 210 mm from the left enclosure wall and 335 mm from the rear enclosure wall as shown in Figure 125.

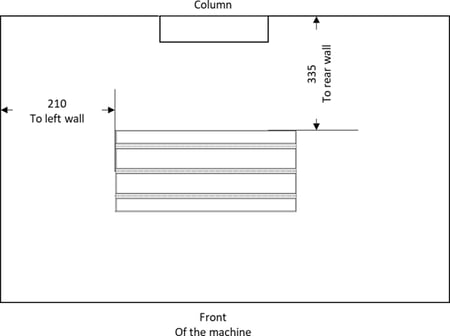

Figure 125: Location of Home in the X and Y directions - drawing

27.5.2 Finding the physical locations of Z axis home

The Z axis home location is the same achieved when the tool change mechanism grabs/catches a tool. Resetting the Z axis home is best done using a Tool Changer Alignment tool as shown in Figure 93

Assemble the alignment tool and manually install it into the spindle and tool changer.

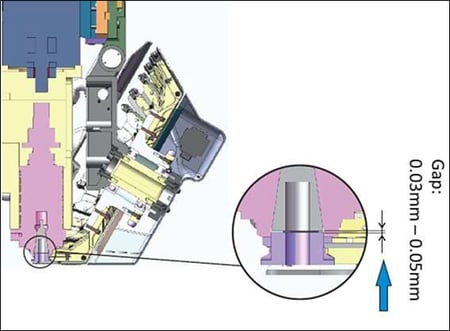

When Z home is achieved, there will be 0.03-0.05 mm gap between the taper and the flange portions of the alignment tool as shown in Figure 94

(a) Arm type tool changer

For the arm type tool changer equipped machines, the Z home location corresponds to the Z height at which a tool change occurs.

WARNING

Because of the inherent risk involved while setting up the tool change height, contact Technical Support

(b) Umbrella type tool changer

For umbrella type tool changer equipped machines, the Z home location is 90 mm above the Z height at which a tool change occurs.

WARNING

Because of the inherent risk involved while setting up the tool change height, contact Technical Support

27.5.3 Siemens 828D- Resetting the home position of the axes

  1. Press the Menu Select key on the controller to allow selection of the advance menus
  2. Press the Setup page softkey on the bottom row of the screen
  3. Press the Password softkey on the vertical row on the right-hand side of the screen
  4. Type in the system Password: SUNRISE
  5. Press the OK button to accept the If the password has been typed correctly you will receive an acknowledgement
  6. Press the data softkey on the bottom of the screen
  7. Press the Axis MD softkey
  8. Select the axis you wish to rehome by pressing the Axis + or Axis – softkeys, on right-hand side of the It will show on the on top right of the screen

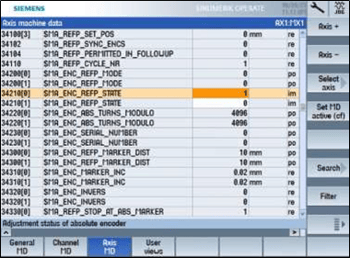

  9. Find the parameter 34210[0],



  10. Set the value of 34210[0] from 0 to 1
  11. On the main keyboard press the Point button to switch to Referencing Mode
  12. Press the selection button for the axis you want to rehome (X, Y, Z or 4th)
  13. Press Axis Jog +(or Axis Jog-) The Machine Coordinate of the select axis will become 0



  14.  Repeat the process for other axes as needed.

27.5.4 SYNTEC 22MA - Resetting the home position of the axes

  1. Move the axis to zero point
  2. Press the softkey

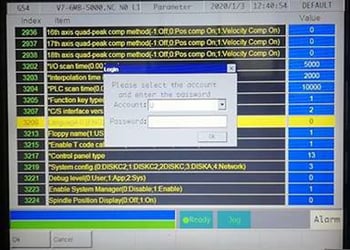

  3. Type in password 2222 and press ↵ Enter

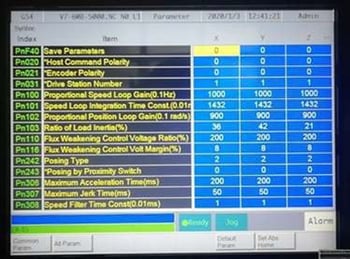

  4.  Press the Serial Tuning softkey



  5. Press the Normal Axis softkey

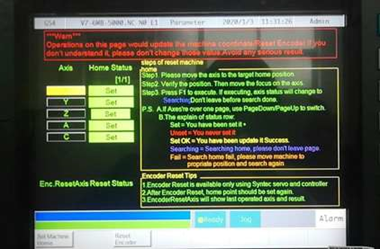

  6. Press the Set Abs Home softkey



  7. Switch to home mode
  8. Press the Set Machine Home softkey

NOTE: The limit alarm may activate, when losing the zero point. If this happens, modify rows 2401 to 2410.

27.5.5 LNC M6800 -Resetting the home position of the axes

Referencing the axes of the machine on the LNC M6800 may also require the resetting of the Absolute Encoder position as well as defining the physical home position. You will need to reset the Absolute Encoder position if replacing a servo motor or if the motor is removed from the coupling with the ballscrew. In the latter case you will also need to reset the home position.

Reset the Absolute Encoder position by doing these steps:

  1. Press the MAINTE key on the keyboard
  2. Type User 5
  3. Type in password 2222
  4. Press the INPUT softkey



  5. Press the U.PARAM softkey
  6. Press the SW.SET softkey

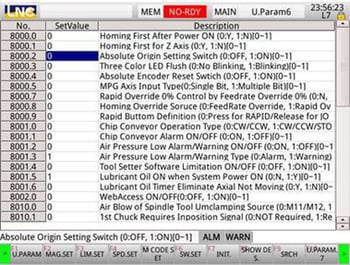

  7. Go to row number 8000.4 and type 1
  8. Return to the maintain page



  9. Press the softkey and press →
  10. Press the SERVO softkey
  11. Press the RESET softkey
  12. Press the RESET softkey and the ABS alarm stops

    NOTE: Reset different axes by pressing the following keys:

    • F1 resets all
    • F2 resets X axis
    • F3 resets Y axis
    • F4 resets Z axis
  13. Restart the machine



  14. Move the X, Y or Z axis to the zero point
  15. Move the X, Y or Z axis to the zero point

If you need to adjust the soft limits while resetting the home positions, you can temporarily

change them by following these instructions:

  1. Press the U.PARAM softkey
  2. Press the SET softkey
  3. Go to row number 8,112 and 8,113 respectively and change the limit number
  4. Set the home point then reset the limit numbers



  5. Press the U.PARAM softkey
  6. Press the SET softkey
  7. Go to row number 8,000.2 and type 1
  8. Return to the maintain page



  9. Press the softkey and press →
  10. Press the SERVO softkey
  11. Press the HOME.SET softkey
  12. Press the STOP softkey

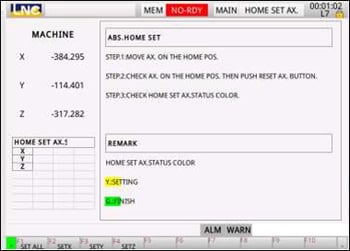

  13. Set X, Y or Z Adjust until it turns green colour. See Figure 132


27.5.6 FANUC

27.6 Resetting the Spindle Orientation

The spindle motor is also a servo motor with a precise encoder fitted to it. This allows the machine to orientate the spindle to also align with the tool holders in the magazine during the tool change procedure.

There may be the need to reset the spindle orientation when a crash has resulted in the motor and spindle coupling slipping or when any part of the spindle has to be replaced.

A Tool Changer alignment tool is best used however you can also use a standard BT30 tool holder without the pull stud.

Using the MPG and the observing the spindle, make sure the drive dogs on the spindle align with the cut outs on the tool holder.

27.6.1 Siemens 828D- Resetting spindle orientation

  1. Press E-stop to avoid unexpected movements of the machine
  2. Manually set the correct position of the spindle



  3. Make a note of the machine coordinate angle MSP1, as shown on the machine screen



  4. Press the Menu Select key on the controller to allow selection of the advanced menus
  5. Press the Setup page softkey on the bottom row of the screen
  6. Press the Password softkey on the vertical row on the right-hand side of the screen
  7. Type in the system Password: SUNRISE
  8. Press the OK button to accept the If the password has been typed correctly you will receive an acknowledgement
  9. Press the data softkey on the bottom of the screen
  10. Press the User views softkey
  11. Find the parameter 43240 and set the angle to the same value as in step 2
  12. Find the parameter 14514[0] and set the angle to the same value as in step 2
  13. Restart the controller
  14. Using the options on the TSM Screen, check that MSP1 angle 0 is

27.6.2  SYNTEC 22MA - Resetting spindle orientation

  1. Press E-stop to avoid unexpected movements of the machine
  2. Manually set the correct position of the spindle



  3. Press the Setting softkey
  4. Type in password 520 and press ↵ Enter

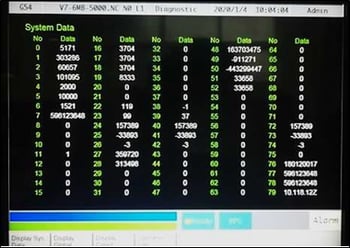

  5. The spindle current position is at row number 028



  6. Press the Setting softkey
  7. Press the softkey
  8. Type in password 520 and press ↵ Enter



  9. Press the Goto softkey

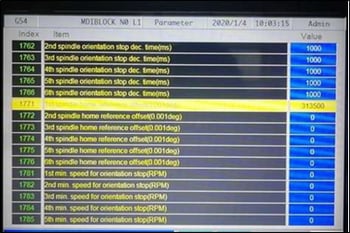

  10. Go to row number 1771
  11. Input the number displayed in the previous page at row number 028 (spindle current position). See Figure 147

27.6.3 LNC M6800 -Resetting spindle orientation

  1. Press E-stop to avoid unexpected movements of the machine
  2. Manually set the correct position of the spindle



  3. Open the electrical cabinet door

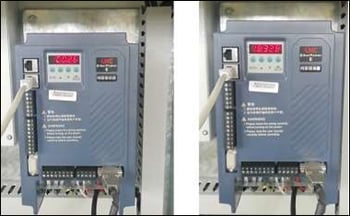

  4. Locate the LNC Spindle motor Driver
  5. Press repeatedly the MENU button until it displays 00
  6. Press repeatedly the ↑button until it displays 26
  7. Press and hold the ENTER button for 3 seconds to display the value from the spindle encoder



  8. On the Controller, press the MAINTE key on the keyboard
  9. Type User 5
  10. Type in password 2222
  11. Press the INPUT softkey



  12. Press the PARAM softkey
  13. Go to row number 8145
  14. Calculate the rotational position of the spindle
  15. F Key functions when Tool Adjust enabled

    Spindle Motor Type

    Equation

    Single phase or 2.2kW spindle motors

    (C0.26/65536)*360*1000

    3.7kW 3 Phase spindle motors

    (C0.26/4096)*360*1000
  16. Type the calculated number into the corresponding parameter 8145 and press Input
  17. Press the ORI button

27.6.4 FANUC

27.7Recovering after a Crash

It is not uncommon for new as well as experienced users to miscalculate tool lengths or mistakenly declare WCS coordinates resulting in the machine violently ramming into the workpiece.

To protect the machine, torque limits have been defined in the Controller and Drivers such that the machine will error in the event of a crash. In the event of a very violent crash, it is possible that the ballscrew to motor coupling may slip resulting in the apparent machine coordinates not corresponding to those set by the factory.

In this case, it is very important to establish if the machine has lost its absolute positions. The implications are that the machine may hit hard stops on any of the axis travels before the soft limits become active. In the case of the Z axis, the tool change position may be incorrect in space and an result in further errors or damage if not corrected.

NOTE: Set the home positions of the axes that require resetting. The following instruction describe the required steps to recover the absolute positions of each axis.

27.7.1 Siemens SINUMERIK

27.7.2 FANUC

27.7.3 LNC M6800 -Recovering from a Z axis crash

NOTICE

In case of crashing the z axis, NEVER do any tool changes as this may
damage the spindle, the tooling and the ATC

As a result of Z axis crash, the coupling between the Z axis servo and the ballscrew may slip. This will cause the controller to operate with wrong coordinates causing:

  • Incorrect tool change height
  • Z axis hitting the Z top hard stop Recover the Z axis by doing these steps:
  1. Establish the amount of by which to correct the Z axis
  2. Move the Z axis to correct MACHINE COORDINATE Z=0 that is also the height at which tool change occurs
  3. Reset the home position to the correct height
  4. Restart the machine
  5. Check tool changes operates as expected WITHOUT TOOLS
  6. The first step is to understand by how much the Z axis position has changed
  7. Select a tool from the tool carousel which length is known
  8. The tool length must have been measured using the tool setter recently
  9. Take notes of the length that is shown in the tool table for that tool
  10. If in doubt of the correct tool number, check the tool pocket by going to:

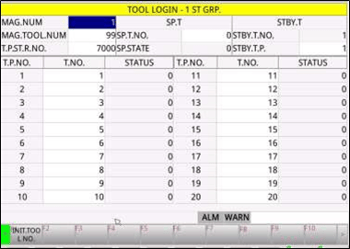

  11. The tool login screen will display the ATC pocket and the corresponding tool number in a table



  12. Do NOT perform any tool changes as this will cause damage
  13. Manually remove the known tool from the carousel and install it into the spindle
  14. Use FEEDRATE OVERRIDES CAREFULLY go to the ATM screen and measure the tool as normal
  15. Go back to the tool table and check the length of the tool that has been

    Remember that the tool length as measured now will be in the position of the tool the machine thinks it has in the spindle

  16. The tool length now displayed is shorter than Take notes of the difference between the previous and the current value
  17. The difference value is how much lower the Z axis needs to be reset by
  18. Go to the POS screen and look at the MACHINE coordinates
  19. Using the MPG Move the Z axis to show MACHINE coordinates 0
  20. Then move the Z axis down by the difference of the tool (For example -2.034)
  21. Switch off the MPG to avoid moving the axis by mistake
  22. Press the MAINTE key on the keyboard
  23. Type in user 5
  24. Type in password 2222
  25. Press the INPUT softkey



  26. Press the PARAM softkey
  27. Press the SET softkey
  28. Go to row number 8,000.2 and type 1
  29. Return to the maintain page



  30. Press the softkey
  31. Press the SERVO softkey
  32. Press the HOME SET softkey
  33. Press the SETZ softkey
  34. Accept all messages and repeatedly press until Z set is See Figure 117



  35. Reboot the machine
  36. Test a tool change without a tool, observing the height of the tool changer to the

27.7.4 SYNTEC 22MA - Resetting the home position of the axes

  1. Press E-stop to avoid unexpected movements of the machine
  2. Manually set the correct position of the spindle
  3. Press the Setting softkey
  4. Press the softkey
  5. Press the Goto softkey

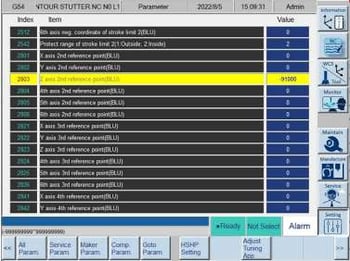

  6. Go to row number 2803
  7. Type in password 520 and press ↵ Enter
  8. Move Z axis up 91 mm (for example if the current coordinate is -102.3 then move to -102.3+91=-3)



  9. Move Z axis to zero point
  10. Press →
  11. Press the Setting softkey
  12. Press the softkey
  13. Type in password 520 and press ↵ Enter

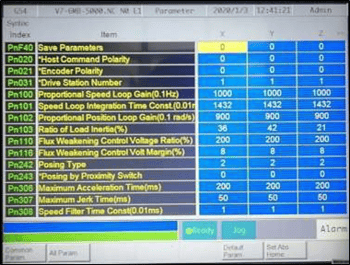

  14. Press the Serial Tuning softkey



  15. Press the Normal Axes softkey

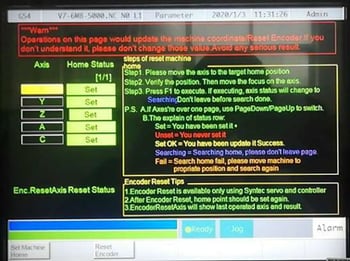

  16. Press the Set Abs Home softkey then switch to home mode



  17. Press the Set Machine Home softkey

NOTE: The limit alarm may activate, when losing the zero point. If this happens, modify rows 2401 to 2410.

27.8 Changing the Memory Batteries

27.8.1 Battery locations

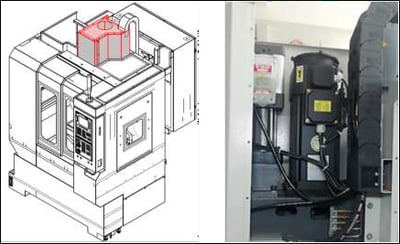

The absolute encoder batteries are found in different locations in the electrical cabinet depending on the controller.

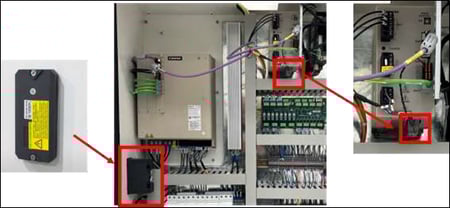

(a) Siemens SINUMERIK 828D

(b) FANUC

(c) LNC M6800

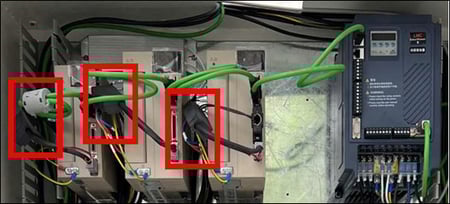

LNC M6800 systems have up to 4 batteries attached to each of the Servo Drivers as shown in Figure 123

(b) SYNTEC 22MA

In SYNTEC 22MA systems, there are up to 2 battery locations. The main battery holder is accessed externally on the left side of the Electrical Cabinet. The 4th axis Servo Driver battery is clipped to the underside of the 4th axis Servo Driver as shown in Figure 124

NOTE: The main Servo Driver requires D-Cell batteries.

NOTE: The 4th axis Servo Driver requires a 3.4-4.5V Lithium battery.

27.8.2 Battery replacement procedure

The process is common on both the LNC M6800 and the SYNTEC 22MA systems.

The power to the controller must be switched on while the batteries are being replaced as there is otherwise no means for the drivers to maintain their memory.

  1. Switch the machine power on and start the controller
  2. When the controller has booted up completely, press the E-Stop button
  3. Locate the battery needing replacement
  4. Unscrew or unclip and remove the battery housing cover
  5. Remove and dispose of the spent battery
  6. Insert new batteries of the same specs with the correct polarities
  7. Refit the cover

27.9 Adjusting the Drive Belt

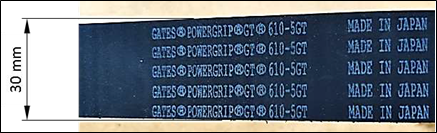

NOTE: The belt installed in the SYIL X7 machine is the model GATES®POWERGRIP®GT®

 610-5GT

  1. Turn off the main Isolator switch
  2. Remove top and side cover panels of the head



  3. Prepare a tool 600 mm long to loosen the 4 x M10 screws that hold the motor mounting plate.



  4. Push the motor back to remove the slack on the belt

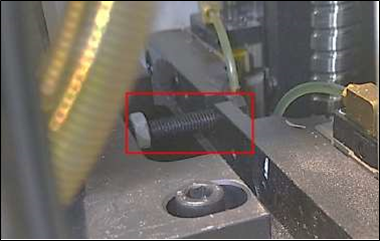

  5. Adjust the tightening screw



  6. Manually rotate the spindle or motor and check the belt is correctly seated on the spindle and motor pulleys
  7. Tighten the 4 x M10 screws to 5 Nm
  8. As a starting point tension, the belt must be tight enough not to be able to twist one side more than 45°, or deflect more than 6 mm
  9. If the belt is adjusted the tighten the 4 x M10 screws to 35 Nm or repeat the previous steps to tighten the belt if necessary
  10. Refit the panels

27.10 Other Maintenance Tasks

For more information on other maintenance tasks, for example torquing the ballscrew mounting screws or bearing replacement, refer to https://support.SYIL.com or contact customer service.
