This machine is provided with various safety devices to protect the operator and the machines. The safety devices include interlock devices and emergency stop switches as well as doors and covers. Never remove any of the safety devices.
Failure to observe this instruction could result in serious harm to a human life or body.

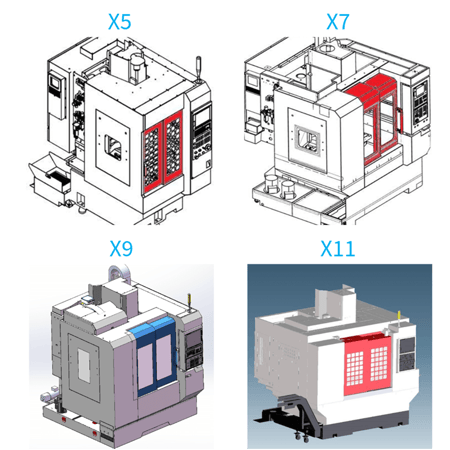

16.1 Fixed Guards and Movable Guards
The machine is provided with covers properly dimensioned to give protection against mechanic transmission systems and working element systems.
Fixed Guards and Movable Guards
Fixed guard
With integrated fixing device

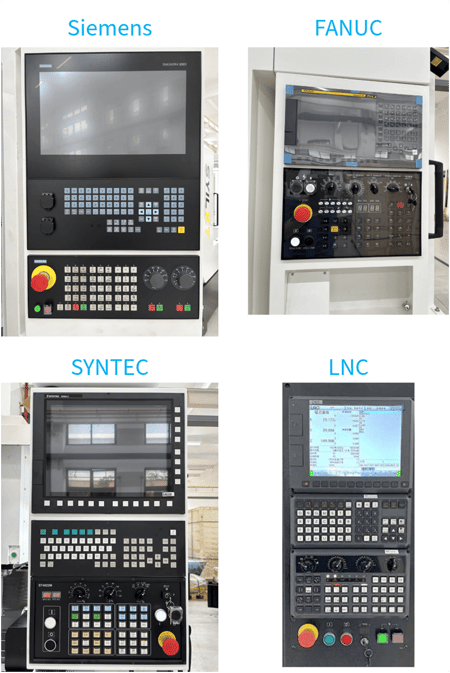

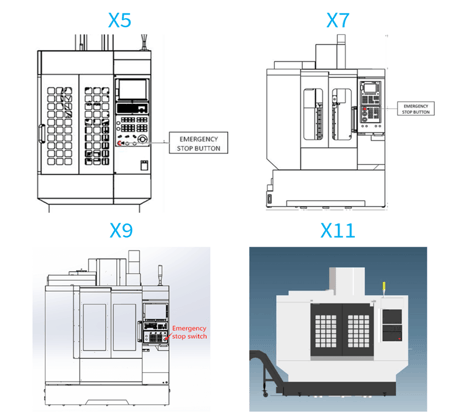

16.2 Emergency stop switch
- Be ready to press the "Emergency stop switch" button during machine operation.
- Do not place any obstacle in front of an "Emergency stop switch" button.
- Even when the "Emergency stop switch" button is pressed, confirm all operations have come to a complete stop before approaching moving parts.

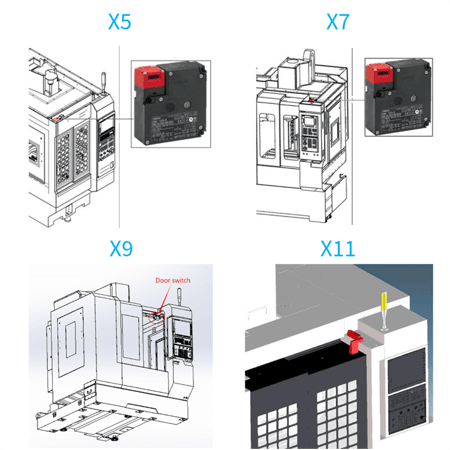

16.3 Interlocking device
Note that releasing the door interlock function to enable limited machine operations with the door open is extremely dangerous.
Figure 4
